INSTALLATION (cont.)
Field-Supplied Millivolt Wall Thermostat Connection
(cont.)
1. Use with a single or multi stage system wall thermostat.
Thermostat type: Millivolt system
2. Set the wall thermostat to cooling system mode, since most wall thermostats
are designed for both heating and cooling.
3. Select the proper location where the wall thermostat can be conveniently
accessed. Install the wall thermostat to the wall at the selected location.
CAUTION: Do not install the wall thermostat where unusual heating
condition may occur (i.e.hot stove, hot pipe, and fireplace or under
direct sunlight).
Most thermostats provide these basic functions:
Fan Mode: On/Auto (Select the desired fan mode)
System: Cool/Heater (Select Cool only)
4. Disconnect power before connecting the wall thermostat to the unit.
5. Connect the wall thermostat to the
terminal block referring to the
connection table shown below.
Recommended extension wire:
Solid wire 16-26 AWG

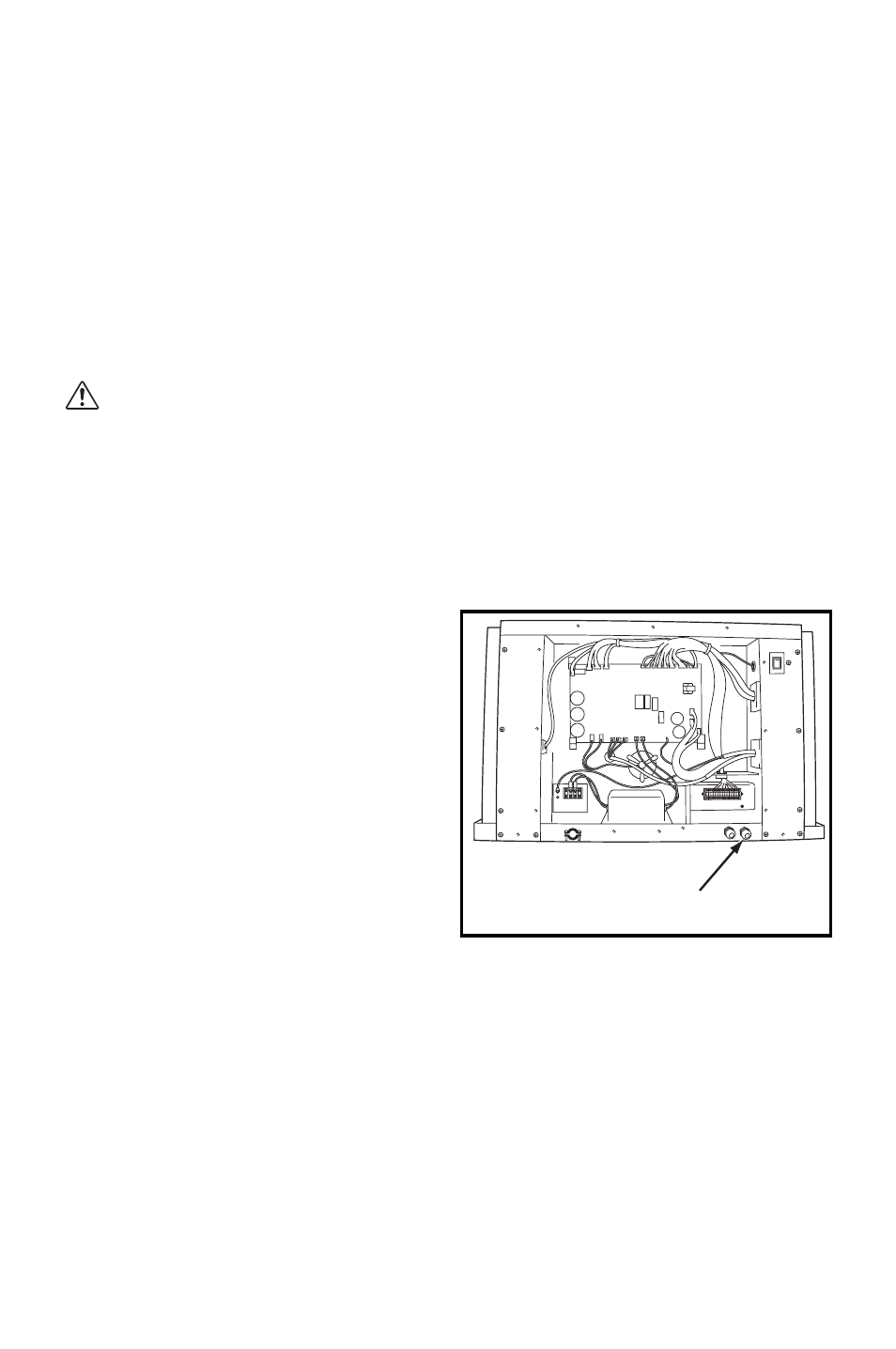

MILLIVOLT WALL
THERMOSTAT WIRE INLET
