LED Board
PDR 200 Service Manual
6-9
LED Board
The LED board contains the following LEDs:
• System Fault.
• Fan Fault.
• Over Temp
• Disk Activity
The cables for the power LED and to the SCSI Backplane and Fan board also connect
to this board.
To remove the LED board:
1. Turn PDR200 power Off and disconnect the power cord.
2. Loosen the front panel retaining thumb screw which secures the chassis in the rack
(Figure 6-3, page 6-6) and slide the chassis forward enough to access the screws
which secure both the handles to the front panel and the front panel to the chassis. Be
careful not to exert stress on any cables connected to the rear panel.
3. Being careful to support the front panel, use the Torx tool with the T15 tip to remove
the two handle and panel mounting screws on each side (1 in Figure 6-6).

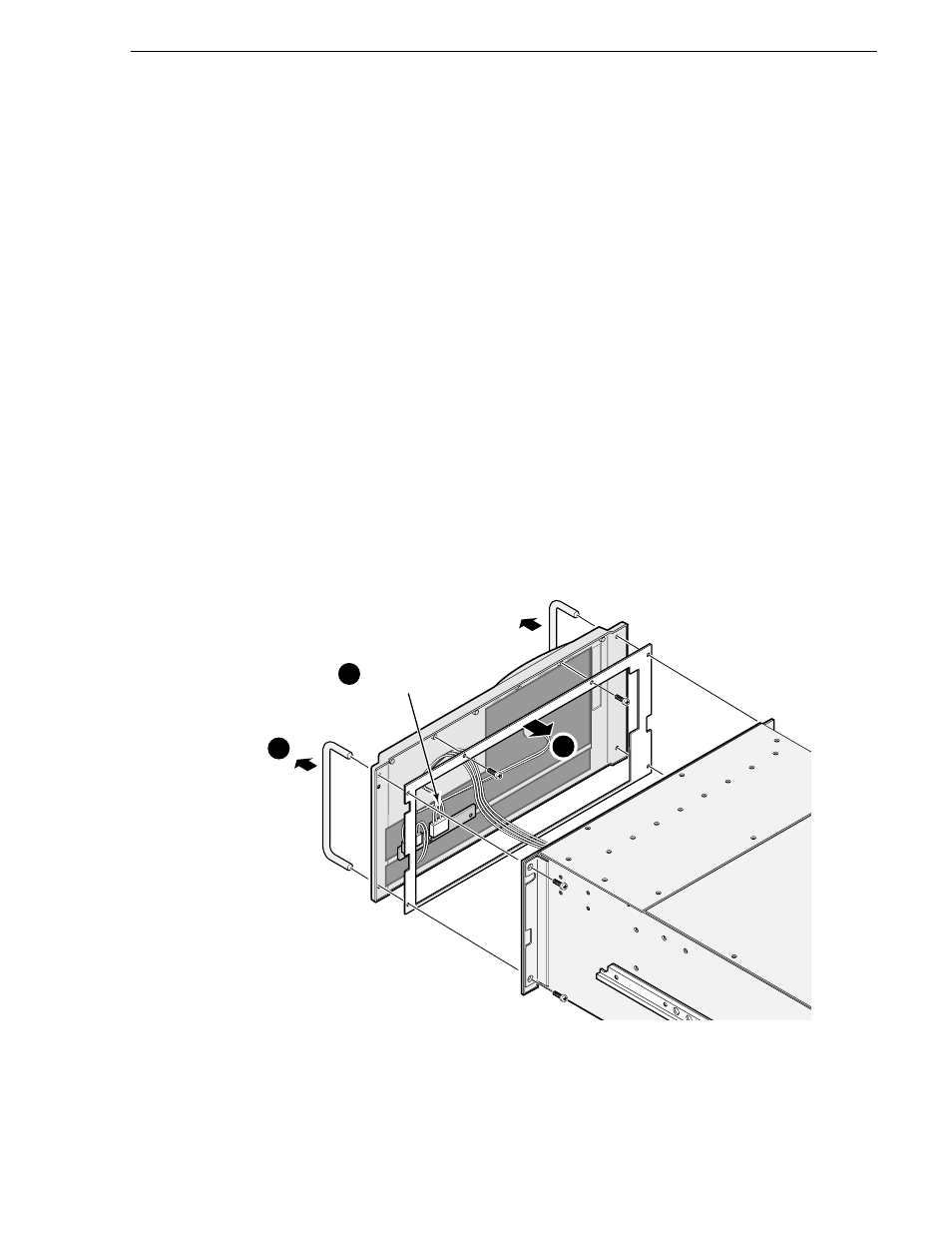

Figure 6-6. Front Panel, Handles, and Gasket Removal
9675-19
3
1
2
Disconnect
LED cable
