Cables | Reassembly

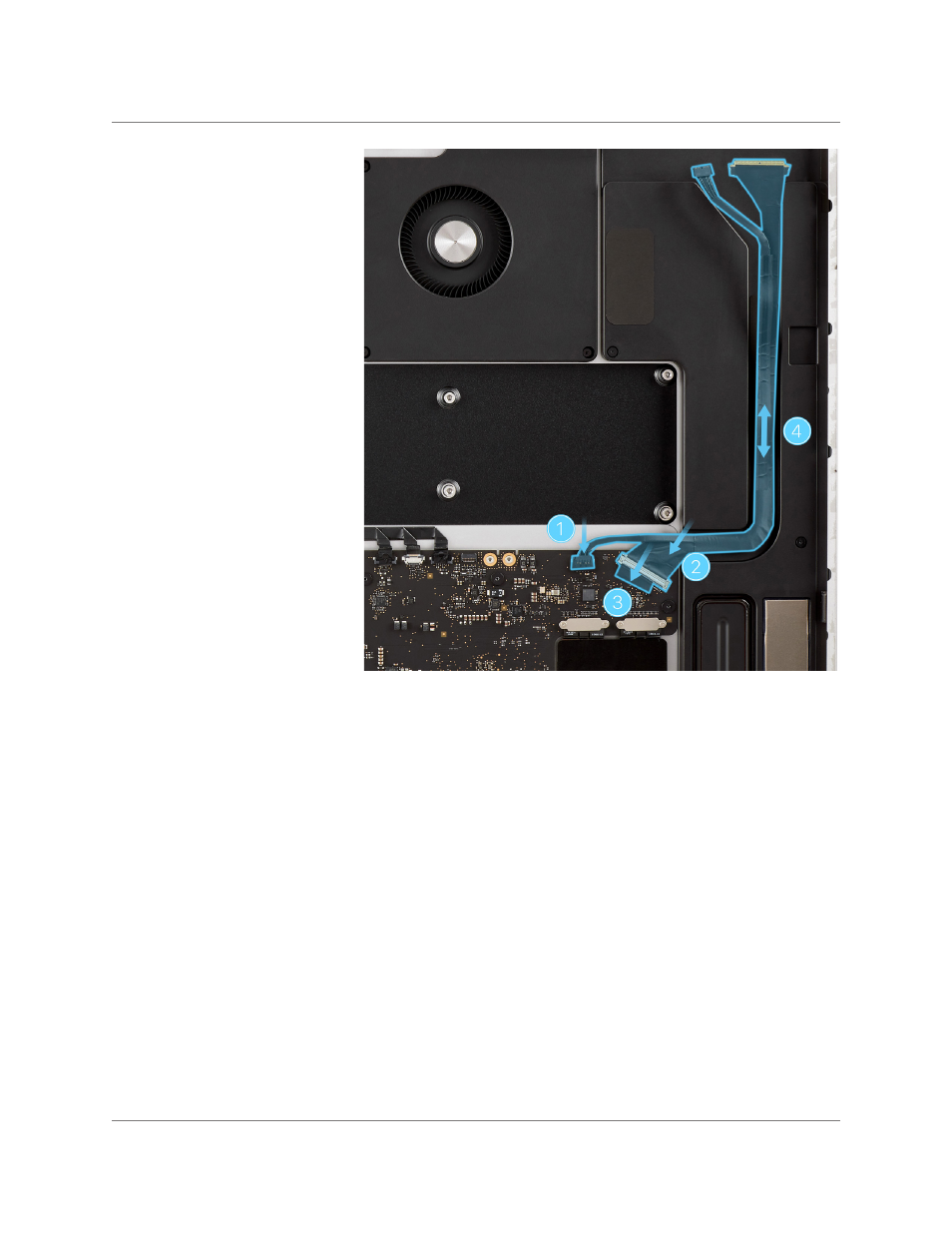

20. Position the DisplayPort
power/signal cable bundle
in the channel in the right
speaker.
21. Slide the end of the
DisplayPort power cable
into the connector on the
logic board (1).
22. Slide the end of the
DisplayPort signal flex cable
into the connector on the
logic board (2). Then use
the black stick to flip down
the locking bar (3).
23. Run the flat end of the
black stick along the
length of the cable to
adhere it in the channel on
the right speaker (4).
