31

INSTALLATION (cont.)

Supplied Wall Mounted Controller Connection (cont.)

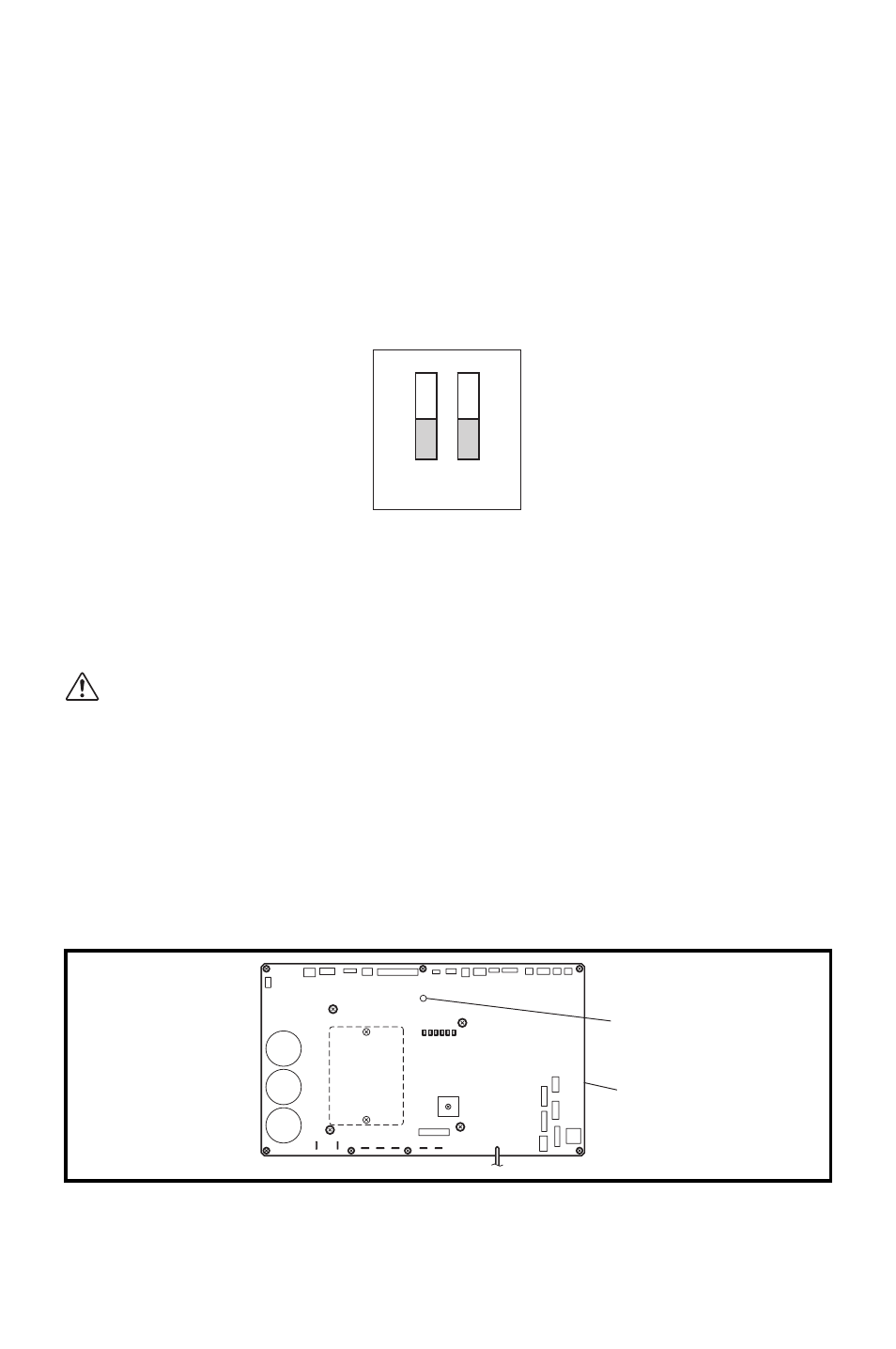

11. DIP switch #1 of DSW1 on the relay board must be in the OFF position to use

the wall mounted controller.

Note:
1. Default position of all DIP switches are the OFF position.
2. If #1 switch of DSW1 is in the ON position, the millivolt wall thermostat is

enabled.

Field-Supplied Millivolt Wall Thermostat Connection

Set up the millivolt wall thermostat without power connection on the unit.

Otherwise, the wall thermostat set up will not be completed.

WARNING:

1. All electrical work should only be performed by qualified personnel.

Repair to electrical components by non-certified technicians may

result in personal injury and/or damage to the unit.

2. Disconnect power before any electrical installation. Beware that

some residual voltage may remain in the unit immediately after the

power is disconnected.

3. Do not touch the relay board of the unit until the green LED7 is

turned off. Failure to follow this warning may lead to electrical

shock.

ON

OFF

1

2

DSW1

ILL00302-00

LED 7

ILL00697-00

1

6

Relay Board
