INSTALLATION (cont.)
Drain Hose Connection (cont.)

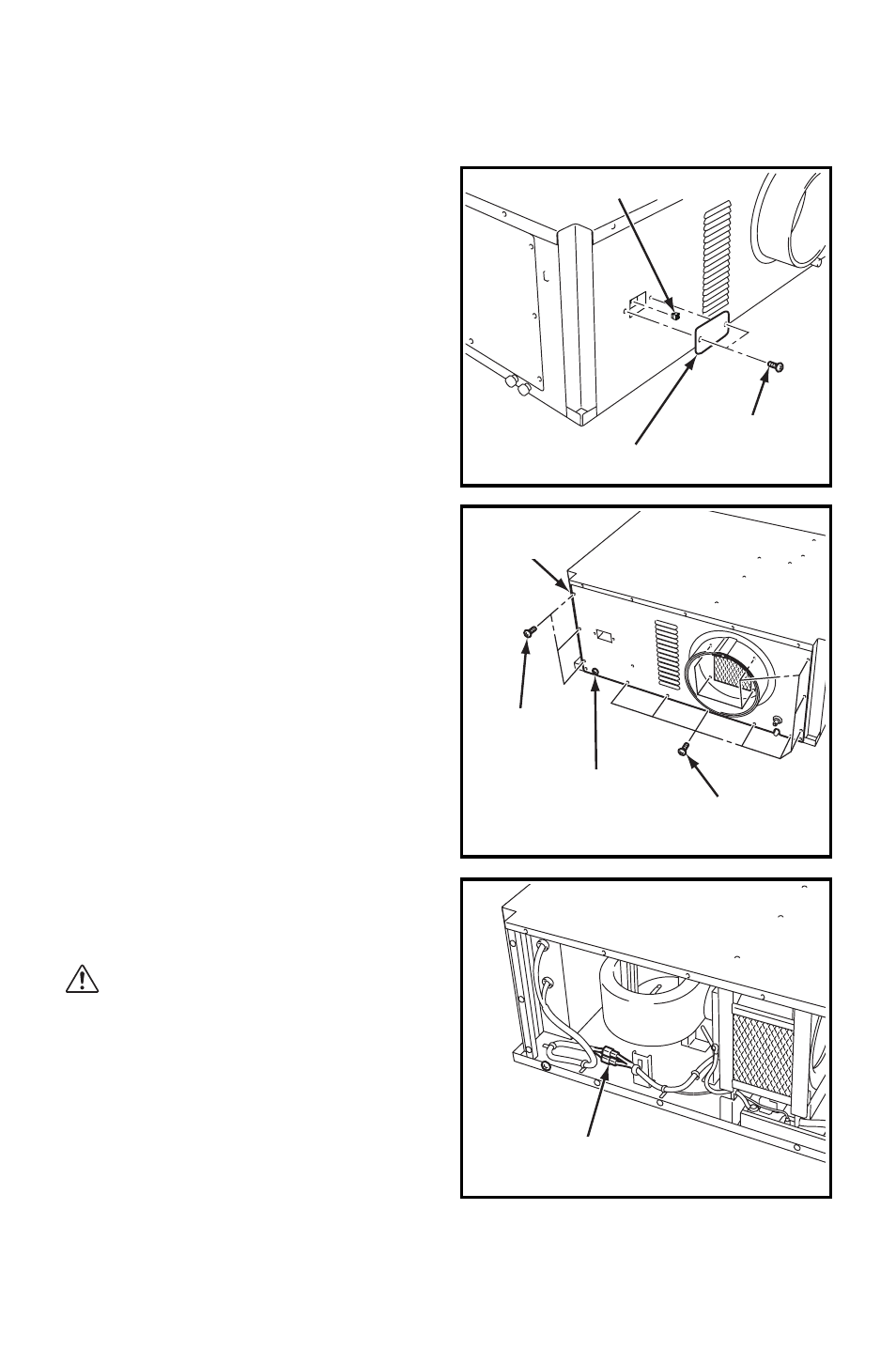

3. Remove the cover plate by removing
two (2) screws. Remove the jumper
plug from the mating connector.
4. Loosen the bottom screw (1).
Remove the front panel by removing
fifteen (15) screws.
5. Disconnect the 2-pin connector
(yellow wire) of the internal
condensation removal pump.
WARNING: Make sure the
connectors are sealed and
secured to prevent electrical
shock or short circuit.
SCREWS (2)
JUMPER PLUG
COVER PLATE
ILL00345-00
SCREWS (12)
SCREWS (3)
FRONT
PANEL
BOTTOM SCREW (1)
ILL00346-00
2-PIN CONNECTOR
(YELLOW WIRE)
ILL00347-00
