INSTALLATION (cont.)

Power Supply and Field Wiring Connection (cont.)

Field Wiring Connection (cont.)

5. Connect the line wire (“R” and “T”) to

the terminal block. Tighten screw at

about 0.96 ft•lbf (1.3 N•m) torque.

6. Connect the ground wire (“G”) to the

terminal block. Tighten screw at

about 0.96 ft•lbf (1.3 N•m) torque.

DIP Switch Configuration and Setting

The controller of the unit is equipped with DIP switches, which default in the OFF

position. The DIP switch can be set to configure the following functions.

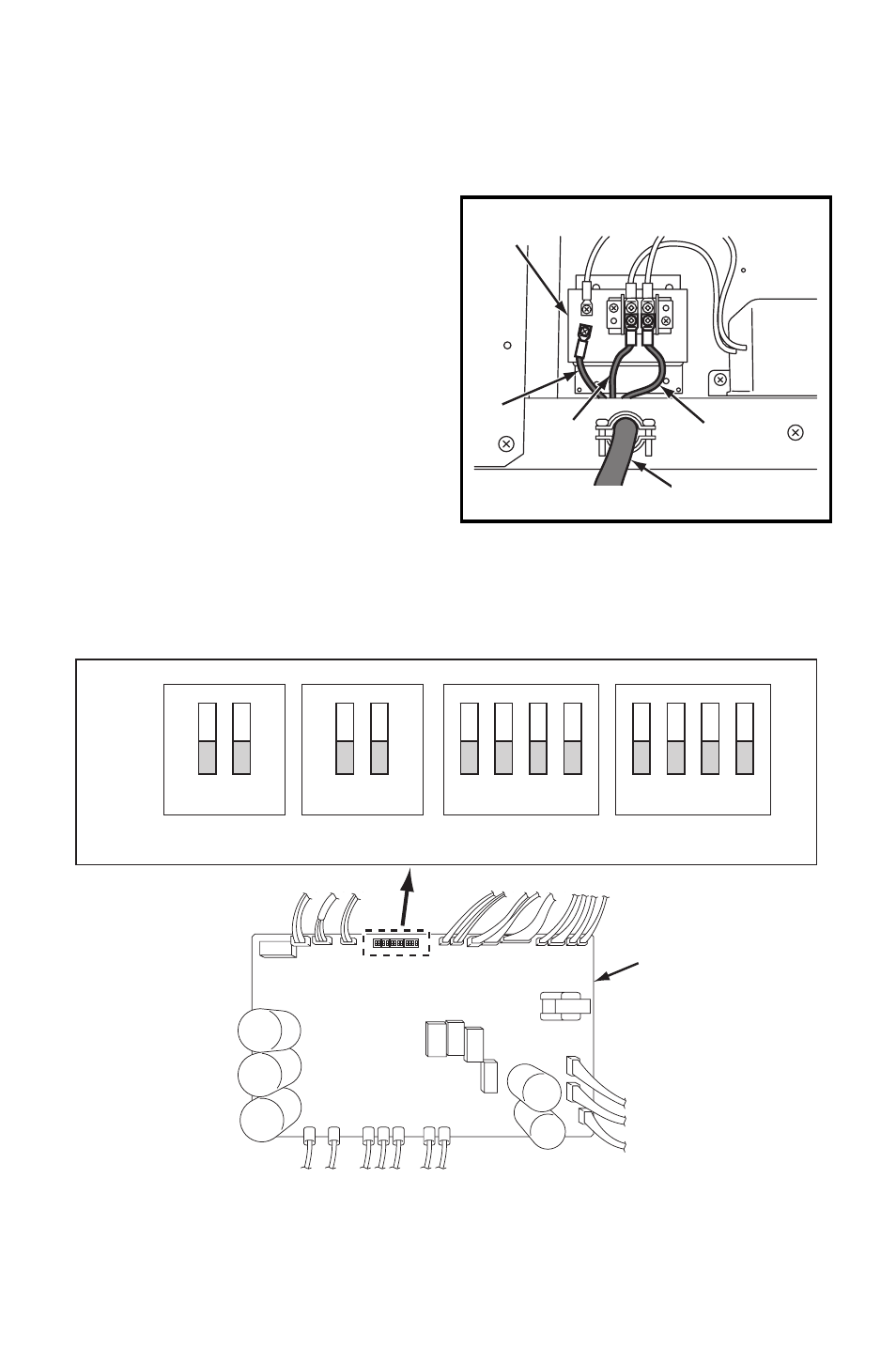

R T

G

POWER CORD

T

R

G

TERMINAL

BLOCK

ILL00271-00

RELAY BOARD

ON

OFF

1 2

1 2

1 2 3 4

1 2 3 4

DSW1

DSW2

DSW3

DSW4

ILL00290-00
