INSTALLATION (cont.)
Power Supply and Field Wiring Connection (cont.)
Field Wiring Connection
The following are recommended wire sizes and electrical ratings:
• Cord Type: SJT (3 wires) or equivalent
• Wire Gauge: 12 AWG
• Voltage Rating: 300 V minimum
• Heat Resistance: 221 °F (105 °C)

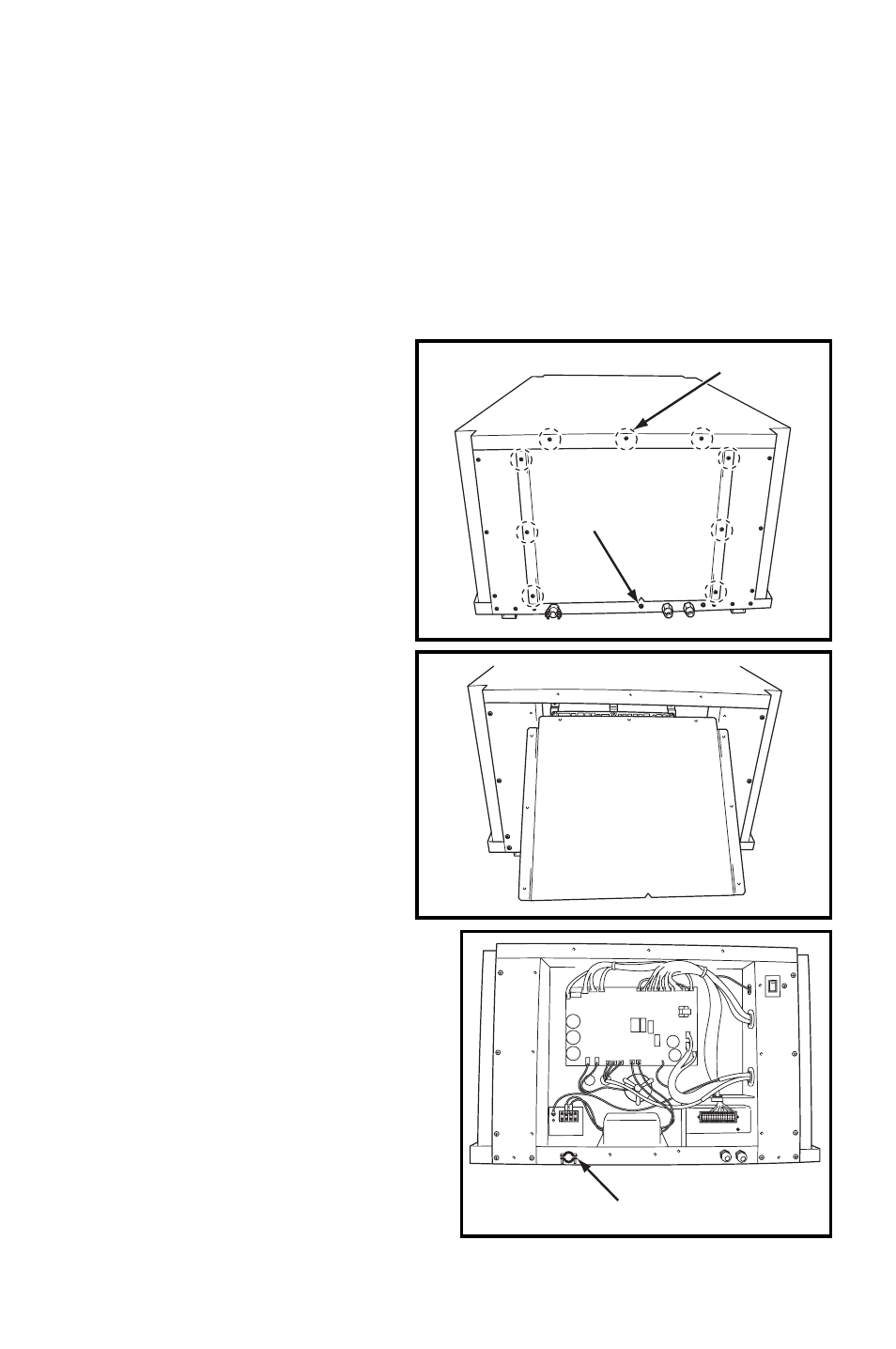

1. Loosen the bottom screw (1).
2. Remove nine (9) screws from
the service panel on left side of
the unit.
Tightening torque for screw:
Approx. 1.10 ft•lbf (1.5 N•m)
3. Remove the service panel.
4. Route power cord wires through
the power cord inlet located below
service panel.
SCREW (9)
BOTTOM
SCREW
ILL00272-00
ILL00273-00
POWER CORD INLET
ILL00289-00
