416 Kayenne XL Package — User Manual
Section 4 — Sidepanel Menu Summaries
Router Page
The menu page can be used to enter source names at the External AUX Bus
if the router control protocol excludes the name transfer, for example ASCII
protocol. The 4-digit names occur at the external AUX bus source and they
are fixed for each external AUX bus.
Router control protocols with a name transfer do not need the setting here.
These protocols are able to grab the name from the external control unit, for
example Prosan.

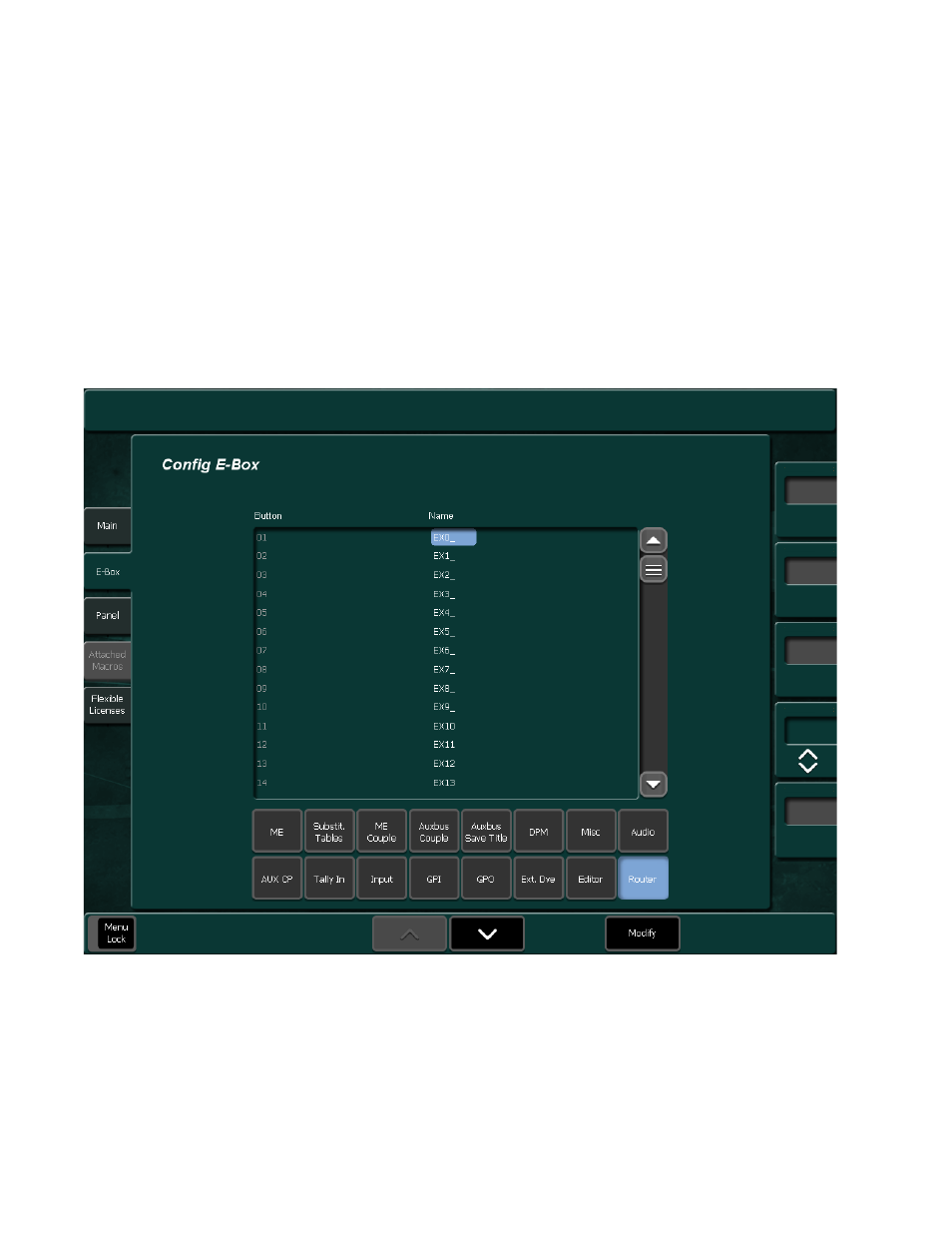

Figure 337. Config E-Box Router
To enter the source names, select the parameter from the scroll list. Then
press Modify to change the parameters. A keyboard appears to enter a four
digit source name.
