Steps
1. Connect the battery cable to the connector on the battery.
2. Route the battery cable through the routing guides on the battery.
Next steps
1. Install the
.
2. Install the
.
3. Install the
.
4. Follow the procedure in
After working inside your computer
.
Assembly inner frame
Removing the assembly inner frame
Prerequisites
1. Follow the procedure in
Before working inside your computer
.
.
.
.
.
About this task

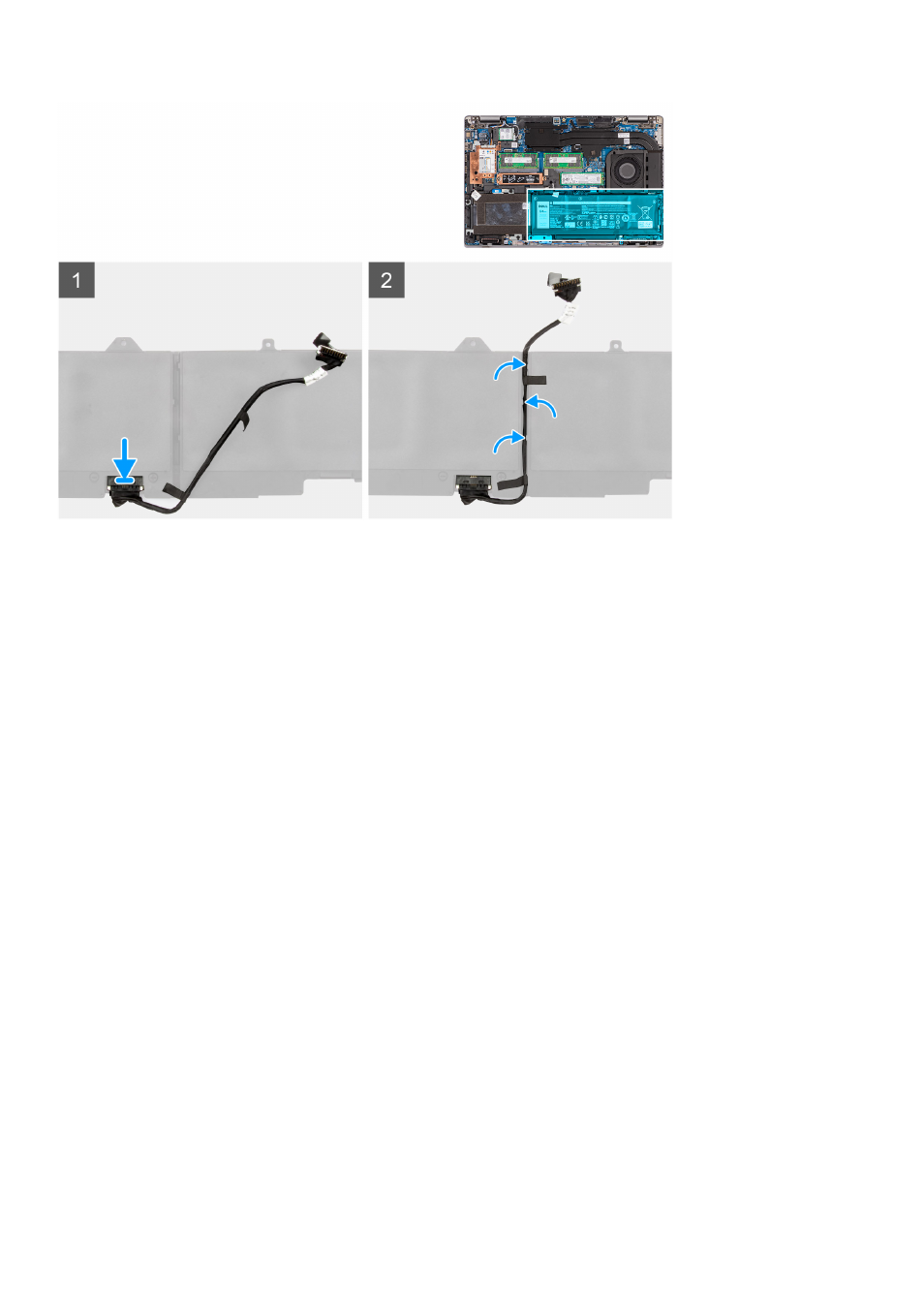

The following images indicate the location of the assembly inner frame and provide a visual representation of the removal
procedure.
Removing and installing components
31
