Steps

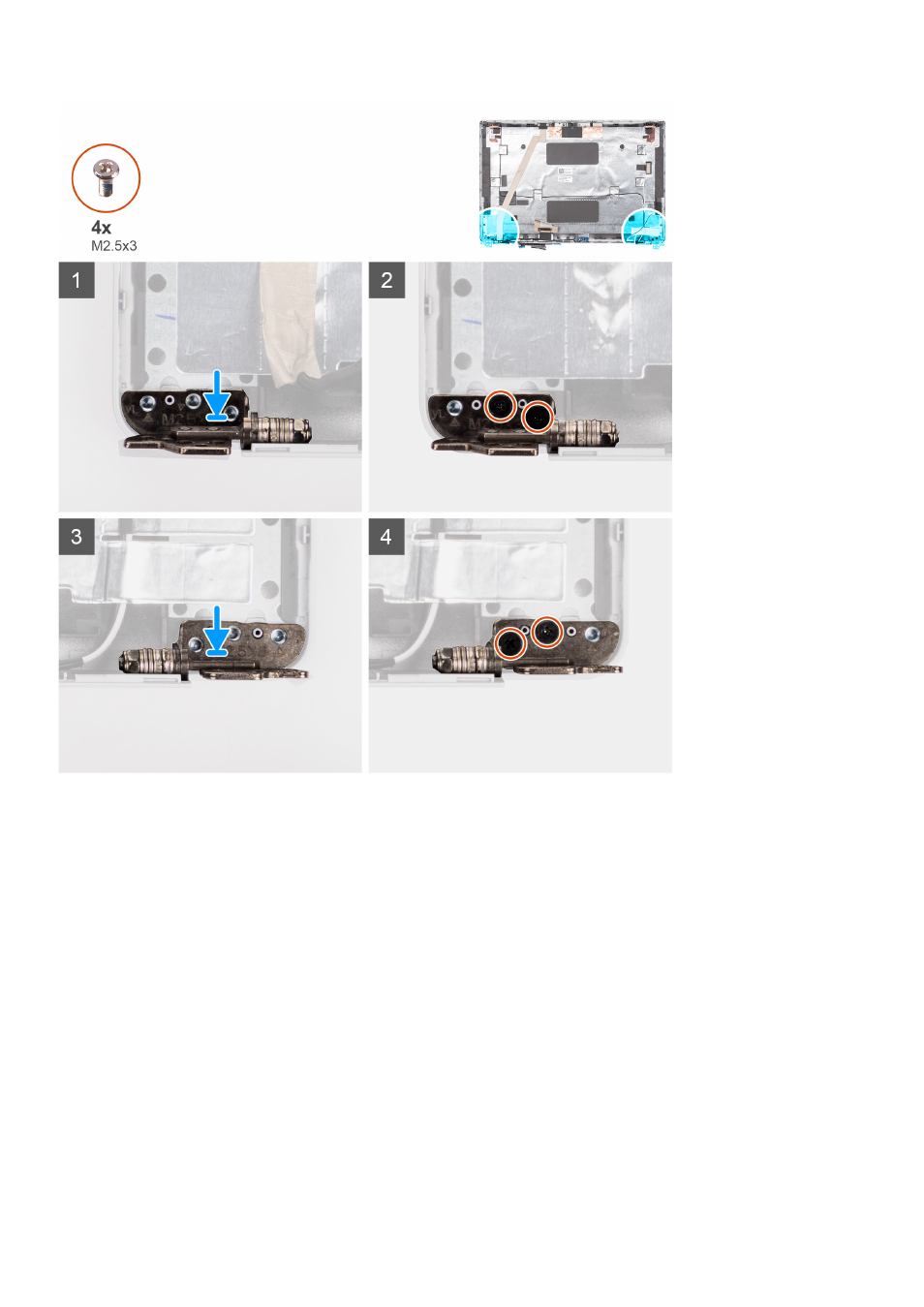

1. Align the screw hole on the left hinge with the screw hole on the display back cover.
2. Replace the two (M2.5x3) screws to secure the left hinge to the display back cover.
3. Align the screw hole on the right hinge with the screw hole on the display back cover.
4. Replace the two (M2.5x3) screws to secure the right hinge to the display back cover.
Next steps
1. Install the
2. Install the
.
3. Install the
.
4. Install the
.
5. Install the
.
6. Install the
.
7. Follow the procedure in
After working inside your computer
.
88
Removing and installing components
