INSTALLATION (cont.)
Mounting CMW30 to Roof Structure (cont.)

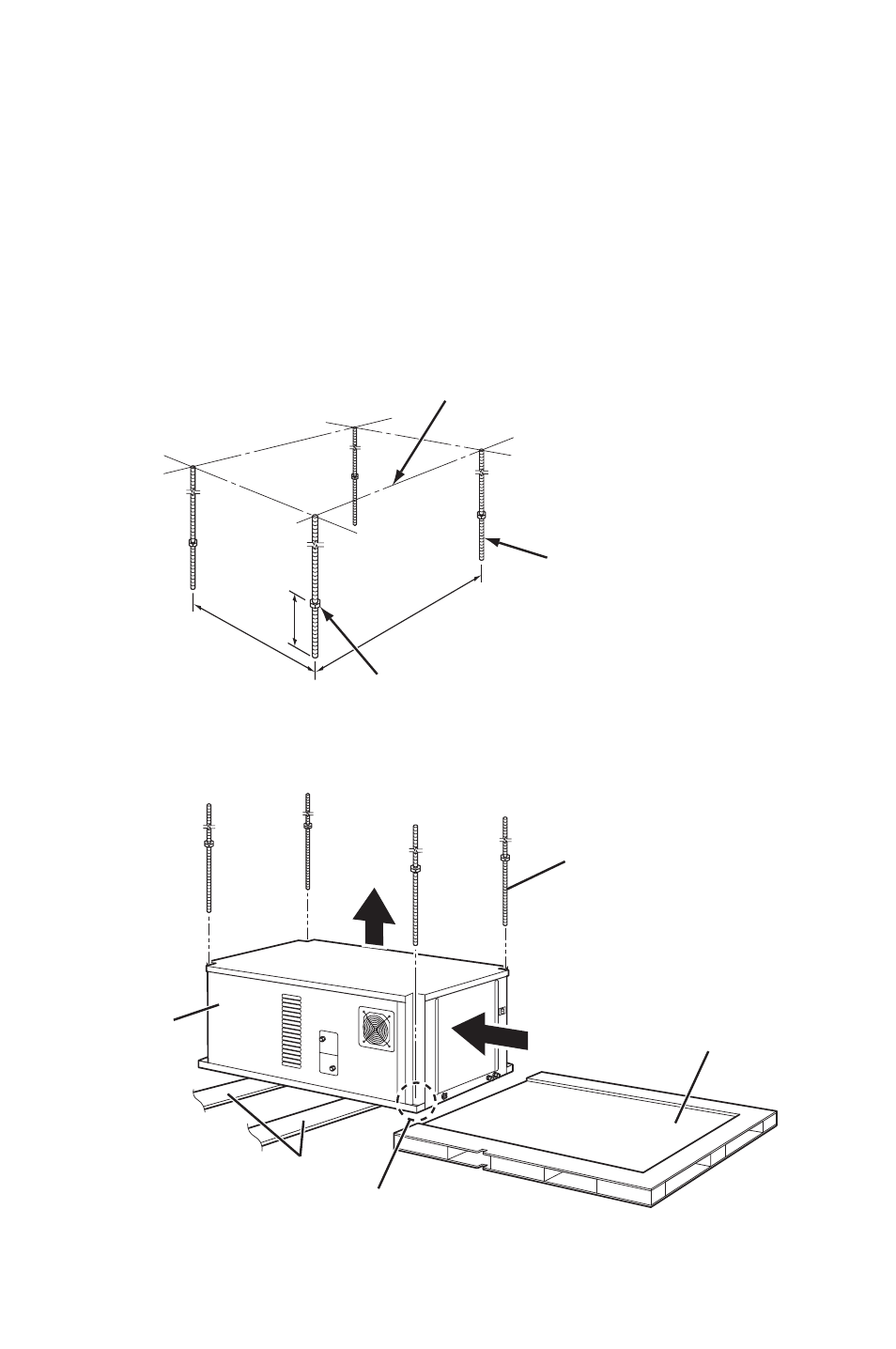

Example of Mounting without Pallet
1. Install four (4) suspension rods by suspending them from suitable building
structure members. Locate the rods so that they will align with four mounting
holes that are part of the unit base. Make sure to securely anchor the top ends
of the suspension rods and tighten all nuts.
2. Insert four (4) nuts (top) to the suspension rods before mounting the unit (12.0
inch minimum height from the bottom end of the suspension rods).
3. Locate the rods so that they will align with four mounting holes. Slide the unit
from the pallet onto the lifts. Slowly lift up the unit.
12.0 in
Min.
29.8 in
43.7 in
THREADED
SUSPENSION ROD
ROOF STRUCTURE
NUT (top)
ILL00257-00
UNIT
PALLET
LIFTS
MOUNTING HOLE
SUSPENSION ROD
ILL00261-00
