Appendix A Profile measurement
Conducting manual profile measurements

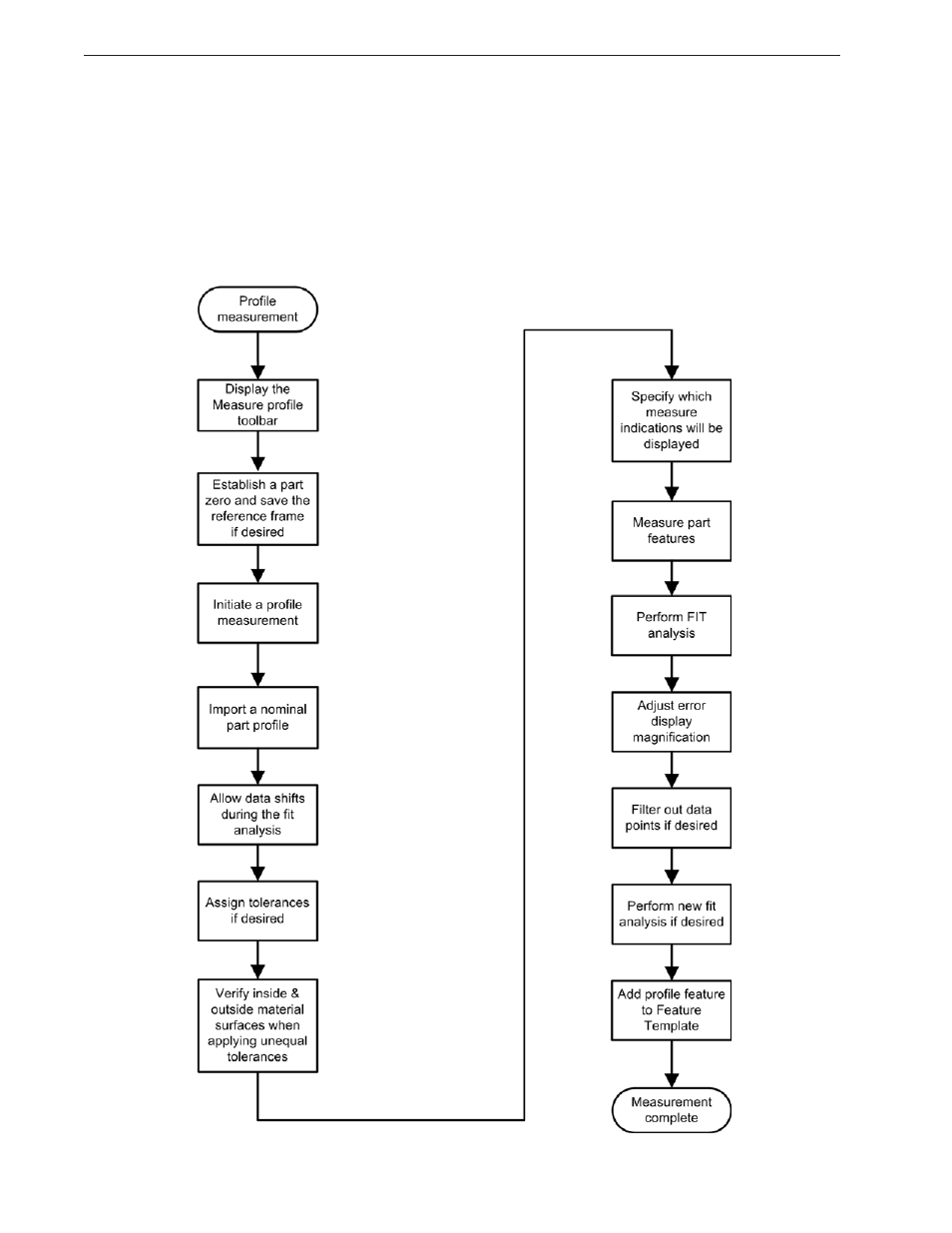

The diagram shown below outlines the minimum steps required to com-
plete a profile measurement. Details regarding the use of measurement win-
dows, menus and tools are described in the referenced pages.
The complete collection of profile measurement functions is listed in the
table of contents.
