RIGOL Chapter 2 Front Panel Operations
2-44 DSG3000 User’s Guide
Power Meter (Option PMC-DSG3000)
The DSG3000 can be connected to the USB power sensor or power meter with USB
interface via the USB Host interface. In this manual, the Agilent U2004A USB power
sensor is taken as an example for description.
After connecting the RF signal source to the AC power supply and turning on it,
please refer to DSG3000 Firmware and Options Installation Instruction to activate
the power meter controller (option PMC-DSG3000). Then, connect the U2004A USB
power sensor to the USB Host interface of the DSG3000. If the message “Power
meter connected successfully” is displayed in the user interface, you can use the
power meter function.
Press  Power Meter to enter the power meter measurement interface as
shown in the figure below.

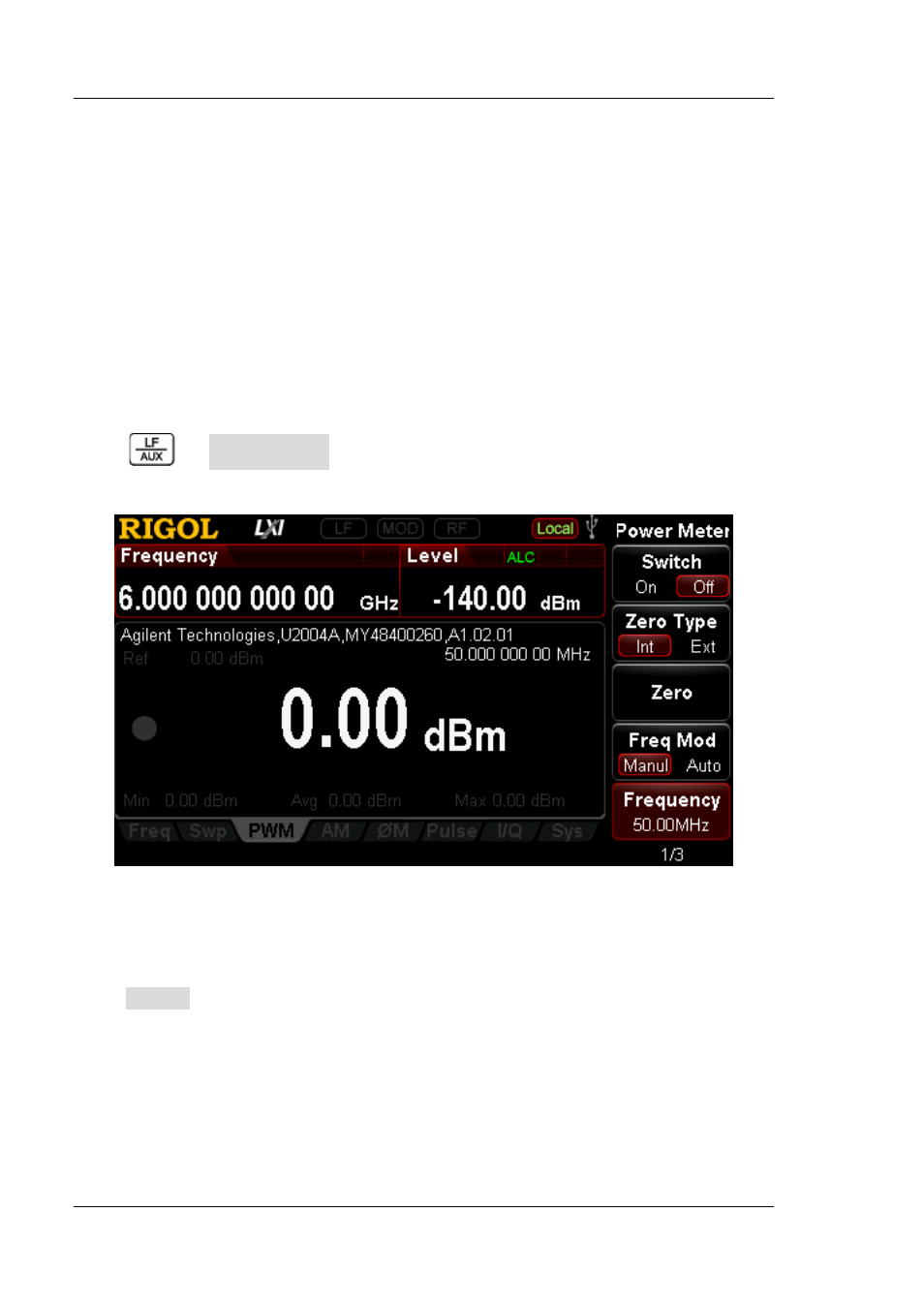

Figure 2-1 Power Meter Measurement Interface
To Enable the Power Meter
Press Switch to select “On” or “Off”.
 On: enable the power meter measurement function. The PWM label is displayed
in the function status area in the user interface.
 Off: disable the power meter measurement function and this is the default state.
