ARRI ALEXA 35 Body & PL Mount Set (LBUS) - Manual (Page 120)

Appendix 120

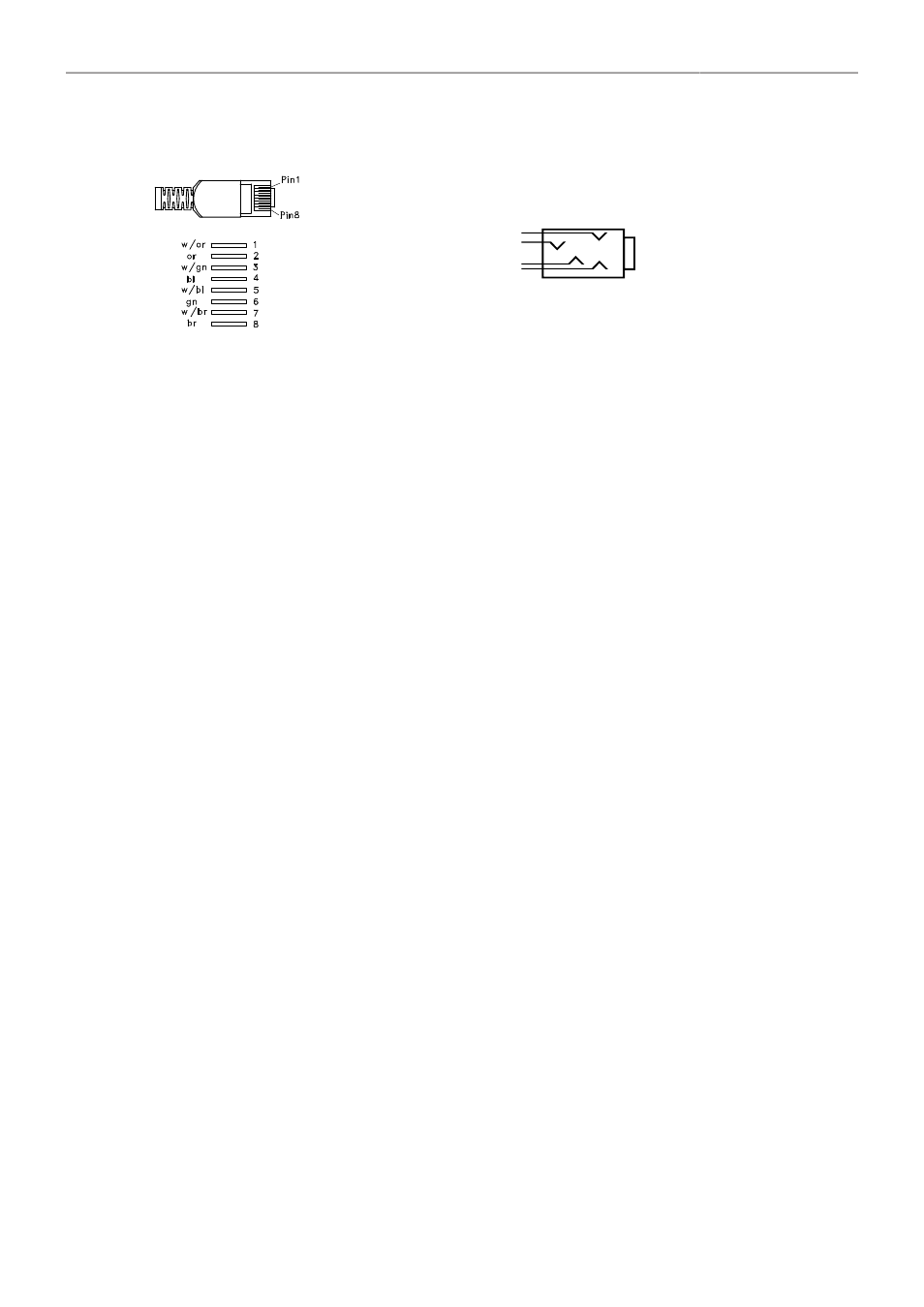

Ethernet (RJ45) Headphones Out (on MVF-2)
4
2
TIP
3 RING
1 GND
GND
1 GND
2 GND
3 R Out
4 L Out
Audio Cable K2.0023988
ARRI offers an ALEXA Mini LF / ALEXA 35 audio cable with a matching connector to create audio
adapters. The following table shows the wire assignments of this cable.
Wire Function
Black
Blue
Brown
Yellow
Green
Red GND
CH 1 (+)
CH 1 (-)
CH 2 (+)
CH 2 (-)
12 V
