Camera Body Overview 13

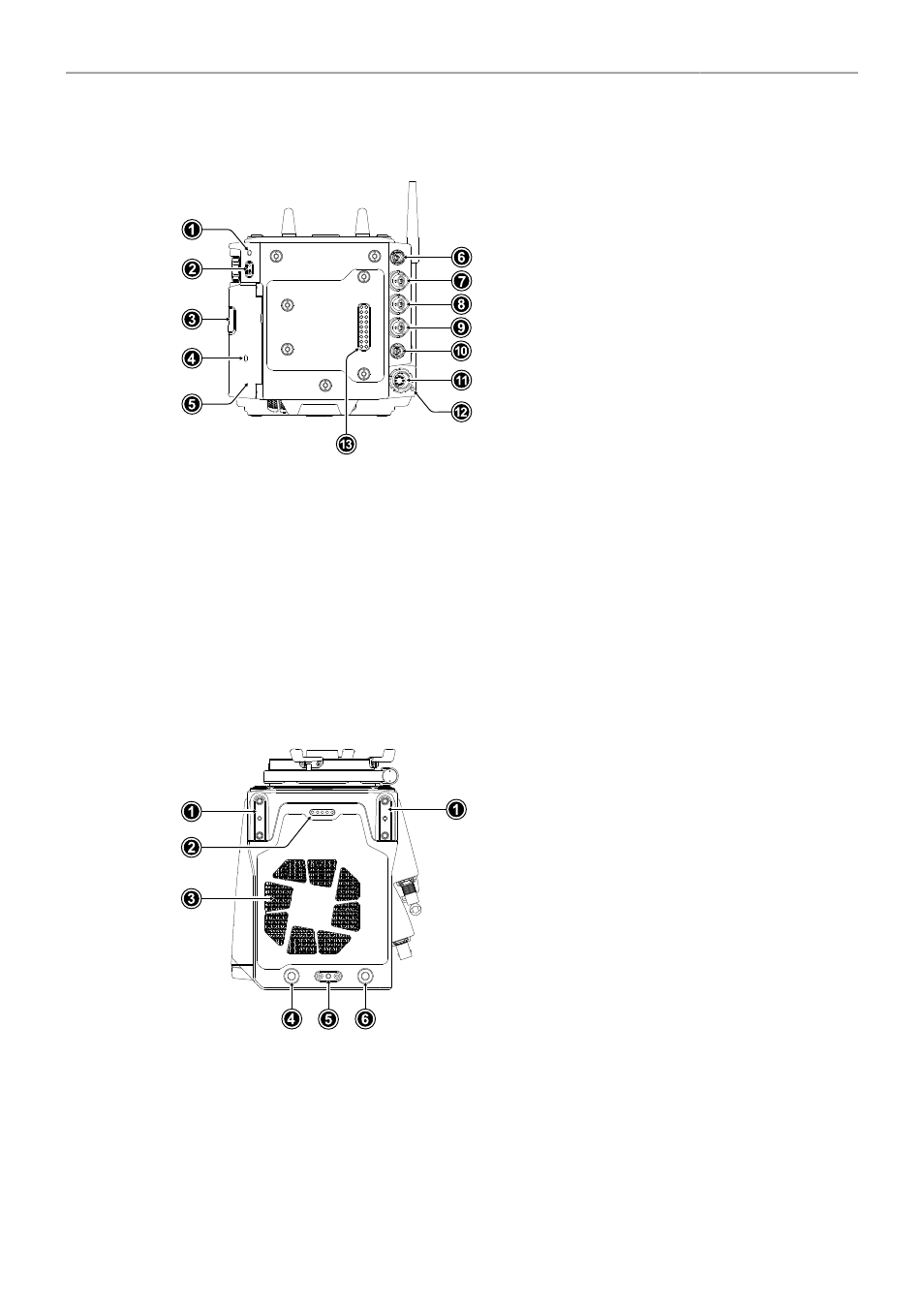

Camera Rear
1 Rear Camera Status LED
2 POWER Button
3 Media Door Release
4 Media LED Window
5 Media Door
6 VF 2 Viewfinder Connector
7 SDI 1 Connector
8 SYNC IN Connector
9 SDI 2 / RET IN Connector
10 TC (Timecode) Connector
11 PWR Connector
12 PWR Status LED
13 Camera Rear Interface
POWER Button
Press the POWER button to switch the camera on, press and hold the button to switch the camera off.
Camera Rear Interface
The rear interface of the camera is used to connect battery adapter plates and electronic accessories
such as the Power Distribution Module PDM-1 and the Audio Extension Module AEM-1. It supplies
power, receives and transmits audio signals, time code and serial data. The power output to the rear
interface pins is interrupted when no adapter or module is connected.
Camera Top
1 Mounting Points for Accessories
2 Top Connector
3 Fan Outlet
4 WiFi Antenna Connector
5 Mounting Point for Accessories
6 WiFi Antenna Connector
Top Connector
For future use.
WiFi Antenna Connectors (RP-SMA)
The camera is equipped with a 2.4 GHz WiFi module and two WiFi antennas, both located on the back
of the camera.
