About the cable labels (supplied) for channel identification
The channel display section for speaker terminals on the rear panel is color-coded for each channel to be identifiable.
Attach the cable label corresponding to each speaker to each speaker cable.
This makes it easy to connect the correct cable to the speaker terminals on the rear panel.

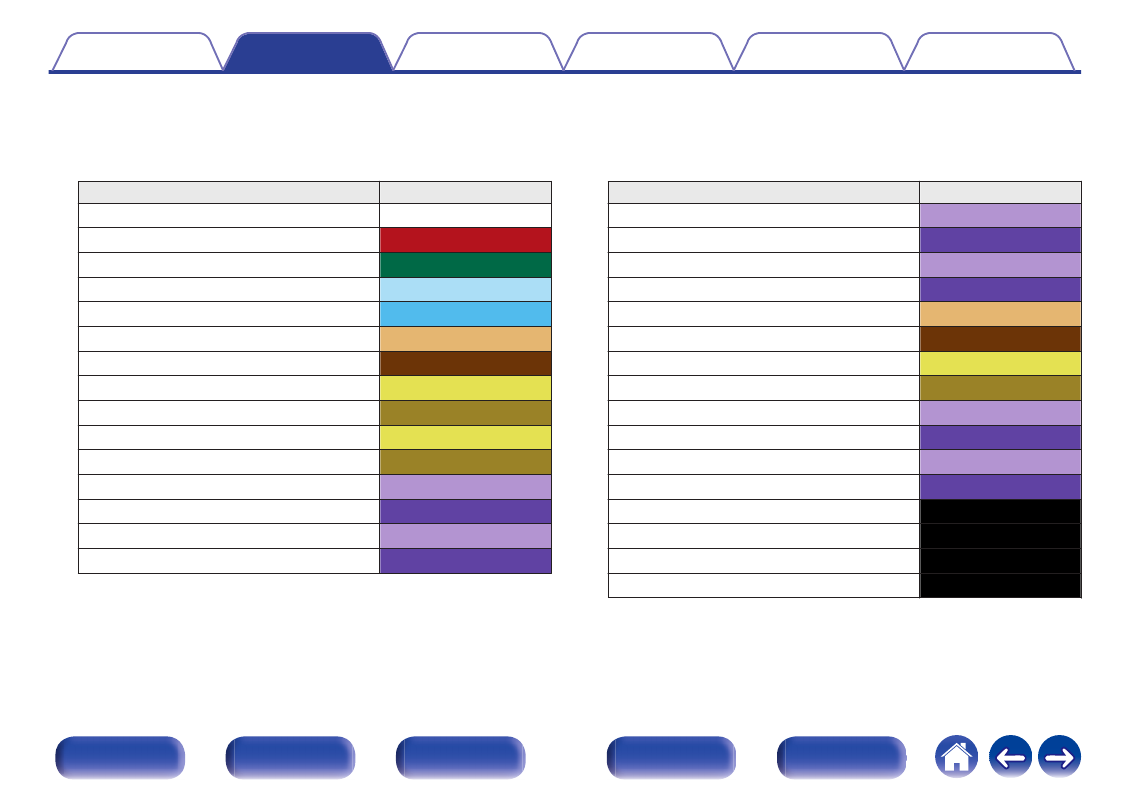

Speaker Color
FRONT L White
FRONT R Red
CENTER Green
SURROUND L Light Blue
SURROUND R Blue
SURROUND BACK L Beige
SURROUND BACK R Brown
FRONT HEIGHT L Light Yellow
FRONT HEIGHT R Yellow
TOP FRONT L Light Yellow
TOP FRONT R Yellow
TOP MIDDLE L Light Purple
TOP MIDDLE R Purple
TOP REAR L Light Purple
TOP REAR R Purple
Speaker Color
SURROUND HEIGHT L Light Purple
SURROUND HEIGHT R Purple
REAR HEIGHT L Light Purple
REAR HEIGHT R Purple
TOP SURROUND Beige
CENTER HEIGHT Brown
FRONT DOLBY L Light Yellow
FRONT DOLBY R Yellow
SURROUND DOLBY L Light Purple
SURROUND DOLBY R Purple
BACK DOLBY L Light Purple
BACK DOLBY R Purple
SUBWOOFER 1 Black
SUBWOOFER 2 Black
SUBWOOFER 3 Black
SUBWOOFER 4 Black
