Bi-wiring connection
This connection limits the effects of signal interference between the high range speakers (tweeters) and low range speakers (woofers), allowing you to
enjoy high quality playback.

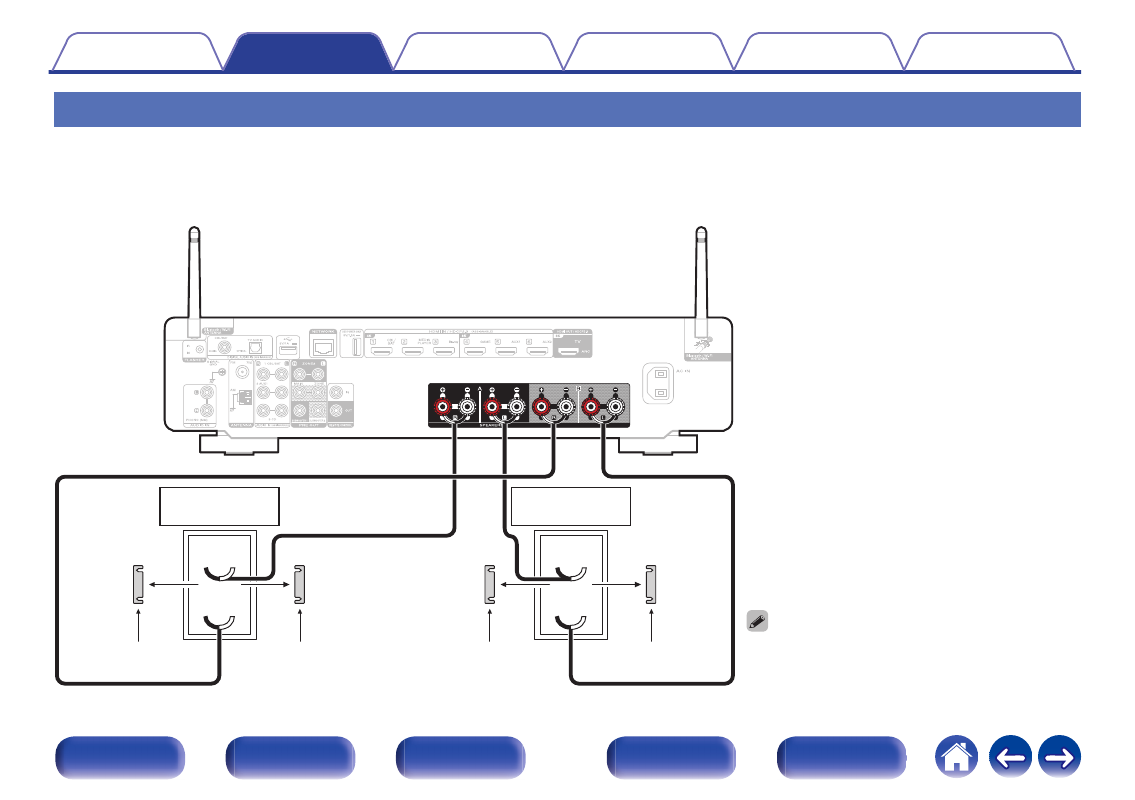

When bi-wiring with bi-wireable speakers, connect the mid and high range terminals to SPEAKERS A (or B), the low range terminals to SPEAKERS B (or
A).
0
When using bi-wiring connections, set the speaker to
“A+B” to output audio from both SPEAKERS A and
SPEAKERS B speaker terminals. (
w q
w
HIGH
LOW
q
w q
w
HIGH
LOW
q
Remove shorting bar
Remove shorting bar
Remove shorting bar
Remove shorting bar
