Chapter 5: Monitor, Diagnostic, Maintenance
Monitor, Diagnostic, Maintenance
NGSME16T2H User Manual | 349

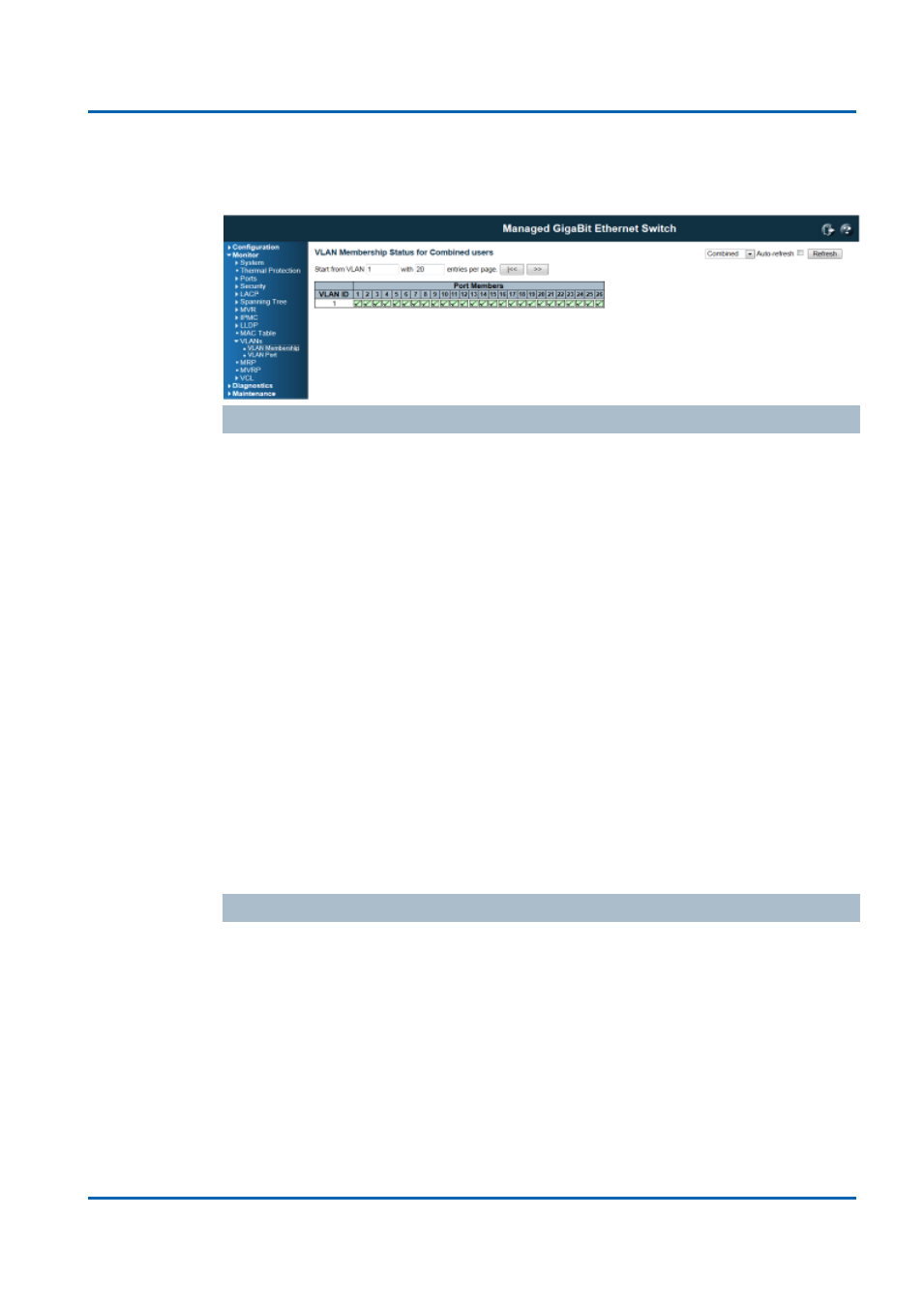

VLAN Membership Status
This page provides an overview of membership status of VLAN users.
VLAN USER
VLAN User module uses services of the VLAN management functionality to
configure VLAN memberships and VLAN port configurations such as PVID and
UVID. Currently we support the following VLAN user types:
CLI/Web/SNMP: These are referred to as static.
NAS: NAS provides port-based authentication, which involves communications
between a Supplicant, Authenticator, and an Authentication Server.
MVRP: Multiple VLAN Registration Protocol (MVRP) allows dynamic registration
and deregistration of VLANs on ports on a VLAN bridged network.
Voice VLAN: Voice VLAN is a VLAN configured specially for voice traffic typically
originating from IP phones.
MVR: MVR is used to eliminate the need to duplicate multicast traffic for subscribers
in each VLAN. Multicast traffic for all channels is sent only on a single (multicast)
VLAN.
MSTP: The 802.1s Multiple Spanning Tree protocol (MSTP) uses VLANs to create
multiple spanning trees in a network, which significantly improves network resource
utilization while maintaining a loop-free environment.
Port Members
A row of check boxes for each port is displayed for each VLAN ID.
If a port is included in a VLAN, an image will be displayed.
If a port is included in a Forbidden port list, an image will be displayed.
If a port is included in a Forbidden port list and dynamic VLAN user register VLAN on
same Forbidden port, then conflict port will be displayed as.
