3. Press the clip as shown to open the rear cover of the kit.

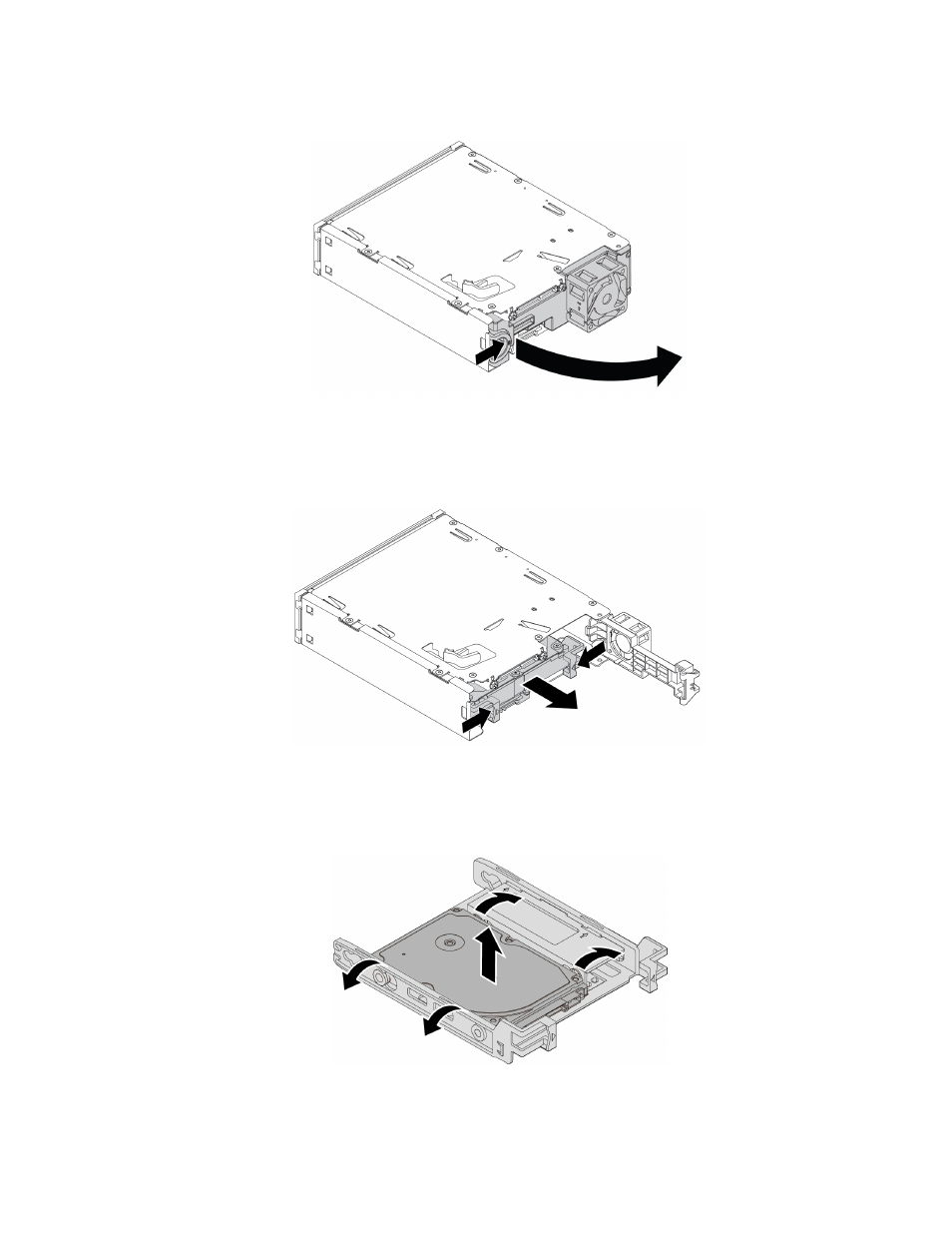

Figure 33. Opening the rear cover of the kit
4. Press both clips simultaneously toward each other and pull the conversion bracket out of the rear of the
kit.
Figure 34. Removing the 2.5-inch storage drive from the kit
5. To remove the 2.5-inch storage drive, flex both sides of the conversion bracket and then remove the
drive out of the bracket. Do not touch the circuit board on the drive.
Figure 35. Removing the 2.5-inch storage drive from the bracket
.
