Machine-specific user parameters
21.1
21
TNC 128 | User's Manual HEIDENHAIN Conversational Programming | 5/2014
491
Calling the configuration editor and changing parameters
Select the
Programming mode of operation
Press the
MOD
key
Enter the code number
123
Changing parameters
Press the
END soft key to exit the configuration editor
Press the
SAVE soft key to save changes

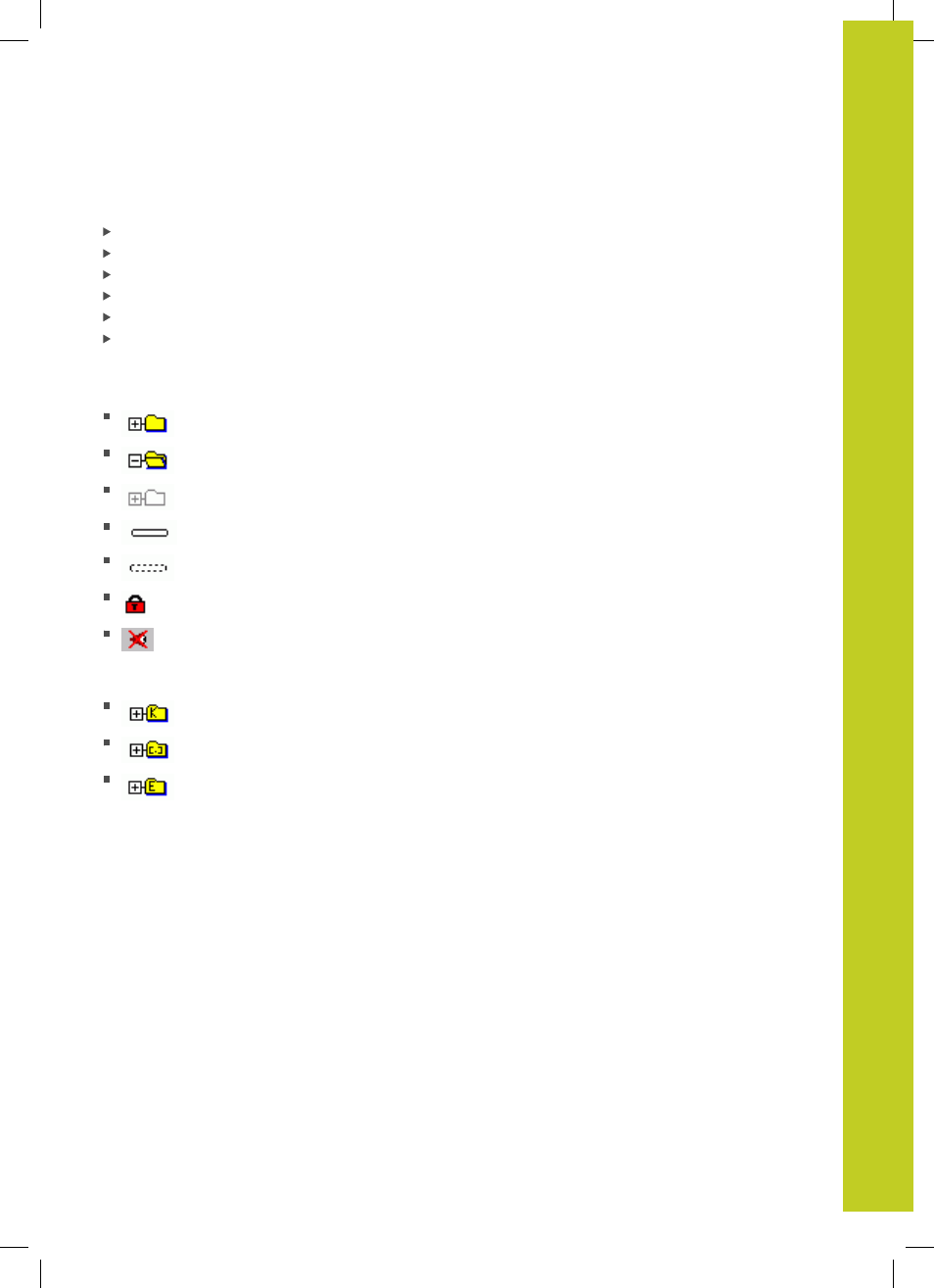

The icon at the beginning of each line in the parameter tree shows
additional information about this line. The icons have the following
meanings:
Branch exists but is closed
Branch is open
Empty object, cannot be opened
Initialized machine parameter
Uninitialized (optional) machine parameter
Can be read but not edited
Can neither be read nor edited
The type of the configuration object is identified by its folder
symbol:
Key (group name)
List
Entity or parameter object
Displaying help texts
The
HELP
key enables you to call a help text for each parameter
object or attribute.
If the help text does not fit on one page (1/2 is then displayed at
the upper right, for example), press the
HELP PAGE soft key to
scroll to the second page.
To exit the help text, press the
HELP
key again.
Additional information, such as the unit of measure, the initial
value, or a selection list, is also displayed. If the selected machine
parameter matches a parameter in the previous control model, the
corresponding MP number is shown.
