10 - User's Manual
Item LED Status
Description
1
Steady
Red
Power on and system booting
Red
LED off
Powered off
2
Steady
Red
+ blinking
Green
every 1 sec. (
Green
LED on for 1 sec and off for another)
Network heartbeat
Steady
Red
+
Green
LED off
Network disconnected
3
Blinking
Red
every 0.15 sec. + Blinking
Green
every 1 sec. (
Red
LED on for 0.15 sec. and
Green
LED on for 1 sec. and off for another)
Upgrading firmware
4
Blinking
Red
every 0.15 sec. + blinking
Green
every 0.15 sec
Restoring defaults

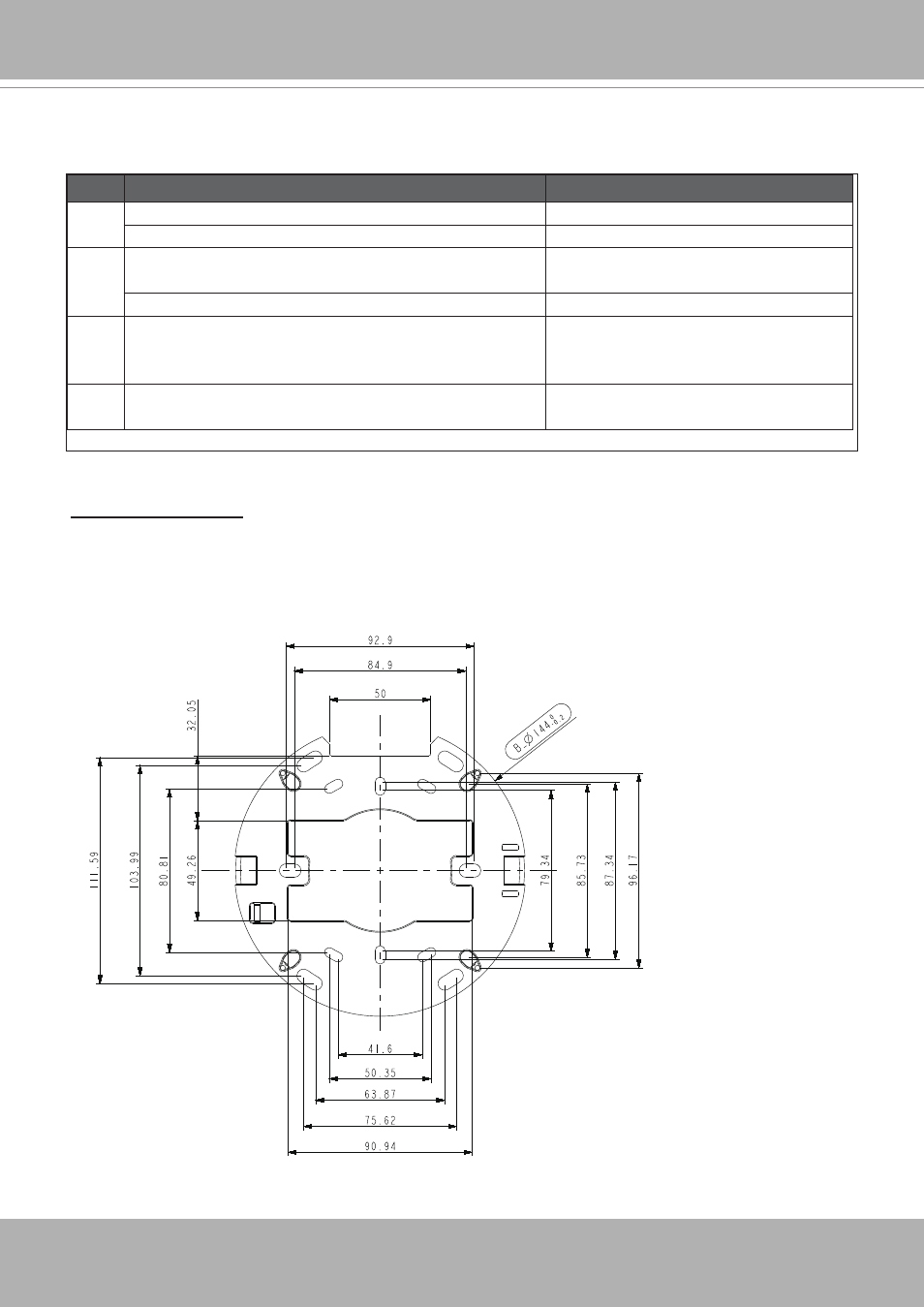

LED Definition
Mounting Positions
Refer to the diagram on the right for the mounting hole positions and the dimensions of the base
plate.
