1R (Single Regional) Display mode:

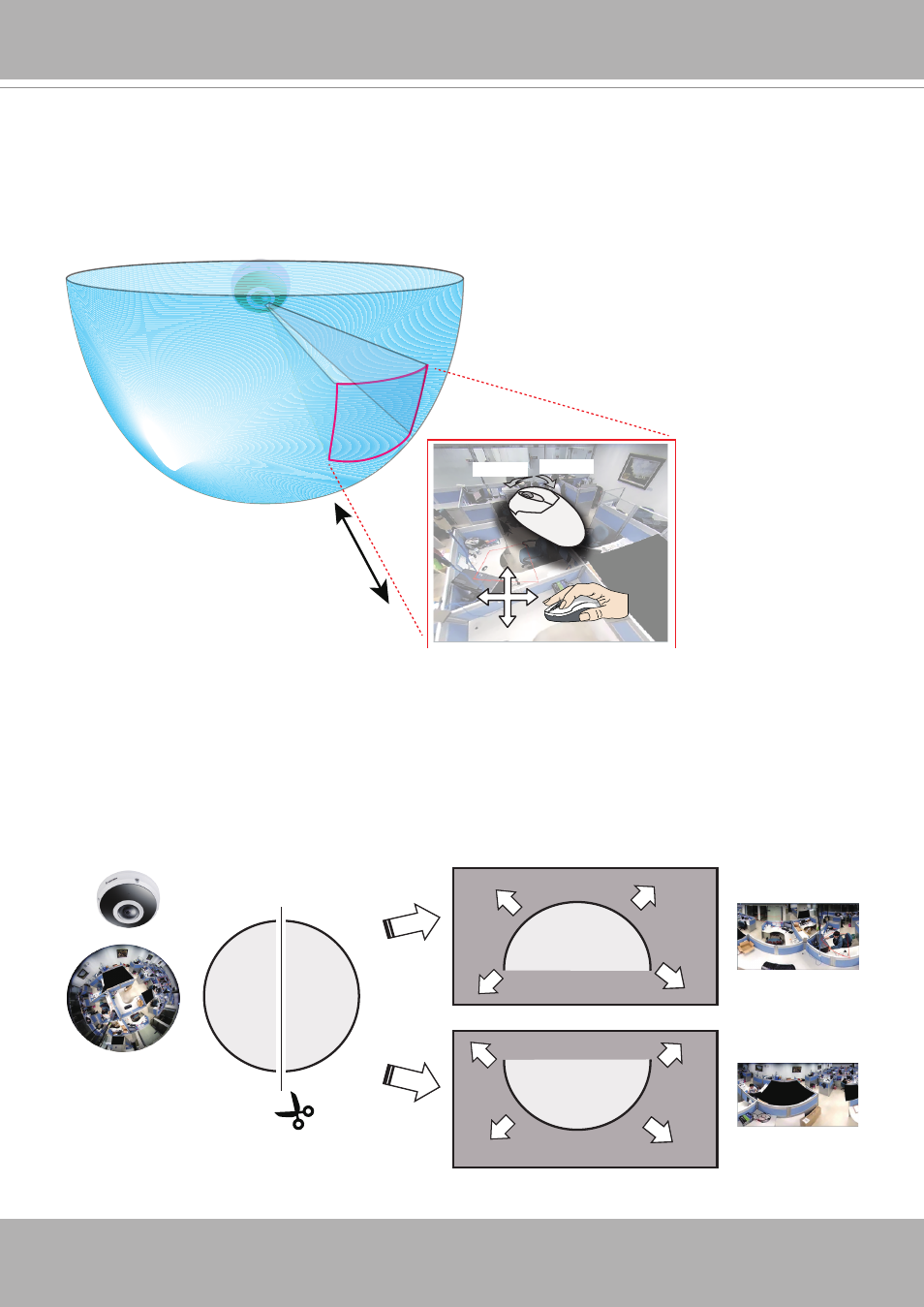

The 1R mode provides access to one image section within the hemisphere. You can zoom in or out
(using the mouse wheel or PTZ panel) or travel to other areas in the hemisphere using mouse clicks and
swipes. A single click on a particular object can bring the object to the center of your view window. Click
and hold down the left mouse button, and you can swipe the view in all directions.
1R View (Single Regional View)
Zoom in/out
&
all-directional
navigation control
Zoom In Zoom Out
2P (Dual Panoramic View) Display mode:
Similar to 1P, the 2P display mode provides simultaneous access to both the left and right sections of a
hemisphere. Both panoramic views are corrected into a more viewable dewarped image. Viewers can
use a mouse click and swipe to quickly scroll horizontally through the surveillance area.
* Note that the dividing line falls approximately on the center of the VIVOTEK logo on camera.
2P View (Panoramic View)
Right hemi Left hemi
Converted to rectilinear view (Dewarp)
