Vivotek FE9380-HV 5MP Outdoor Network Fisheye Dome Camera with Night Vision - Manual (Page 66)

VIVOTEK
66 - User's Manual
Media > Image
This section explains how to configure the image settings of the Network Camera. It is
composed of the following tabbed windows: General settings, Image settings, Exposure, and
Privacy mask, and Pixel Calculator.

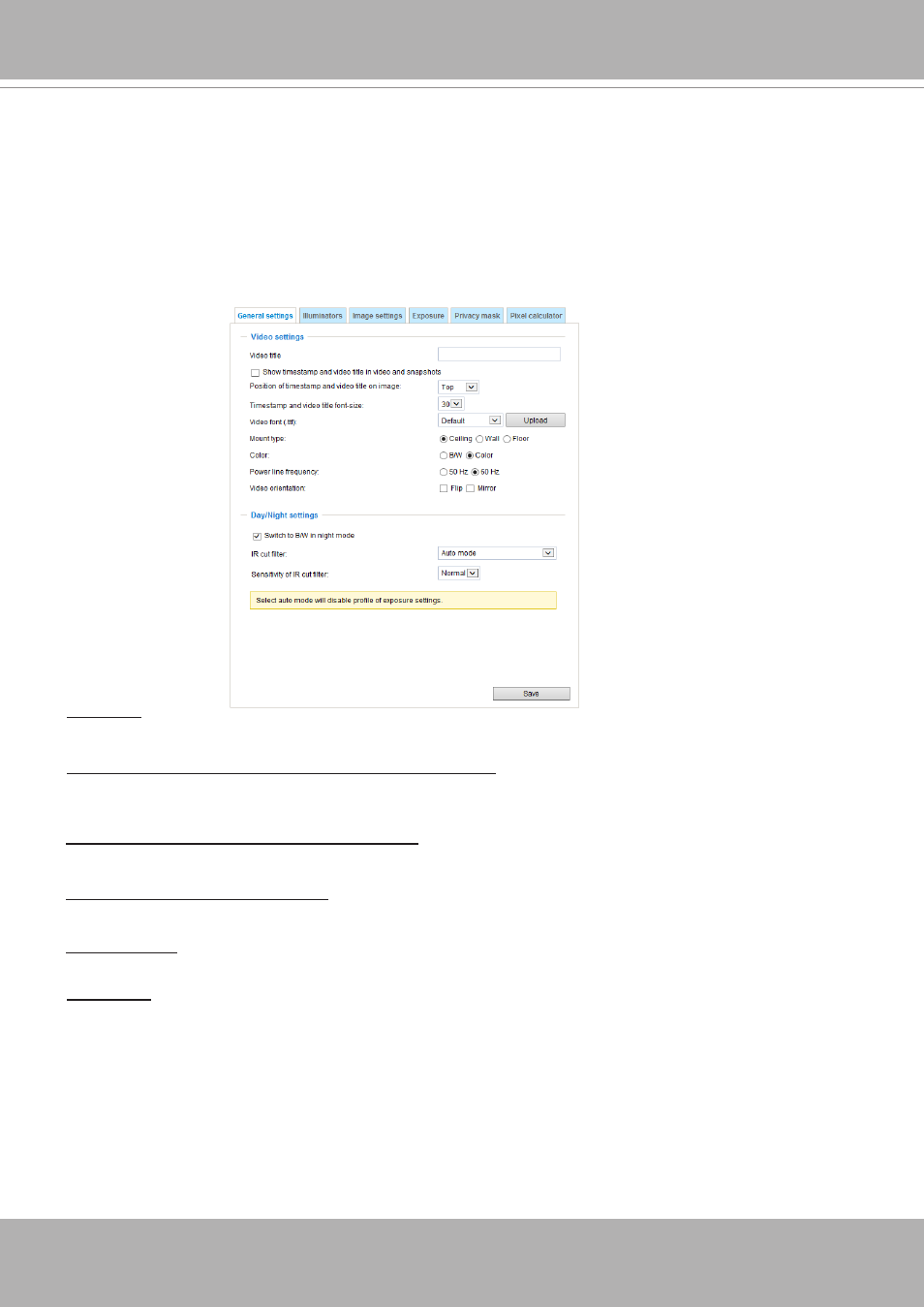

General settings
Video title: Enter a name that will be displayed on the title bar of the live video as well as the view cell on
the ST7501 and VAST recording software.
Show timestamp and video title in videos and snapshots: Enter a name that will be displayed on the title
bar of the live video as the picture shown below.
Position of timestamp and video title on image: Select to display time stamp and video title on the top or
at the bottom of the video stream.
Timestamp and video title font size: Select the font size for the time stamp and title.
Video font (.ttf) : You can select a True Type font file for the display of textual messages on video.
Mount type: There are 3 Mount types - Ceiling, Wall, and Floor.
Ceiling : The Ceiling mount type automatically delivers upside-down images. The Ceiling mode
supports the following Display modes - 1O, 1P, 1R, 2P, 1O3R, 4R, 4R PRO, and 1O8R.
Wall : The Wall mount type applies to the monitoring of long, side-to-side surveillance areas, such
as when mounted on a wall facing a corridor. Different Mount types have different options with the
Display mode settings. For example, the 1P2R (1 Panoramic & 2 Regional) and 1P3R (1 Panoramic
& 3 Regional) display modes are only available when the “Wall“ Mount type is applied.
Floor: The Display modes with the Floor mount type are identical to those for the Ceiling mount
except that the images are not vertically flipped.
