Grass Valley PDR v.2.2 - Manual (Page 155)

Configuring a Controller
Profile Family 137
Configuring a Controller
You can configure the playback and record JPEG channels, audio channels and
the VITC timecodes for the selected controller.
1. Click the panel to select it.
2. Choose Controller | Configure to open the Profile Options dialog box for the
selected panel. Figure 75 illustrates the standard Profile options with an
example configuration selected; Figure 76 illustrates the
Profile Options
dialog box for BVW [insert-edit], also with appropriate selections shown in
the example.

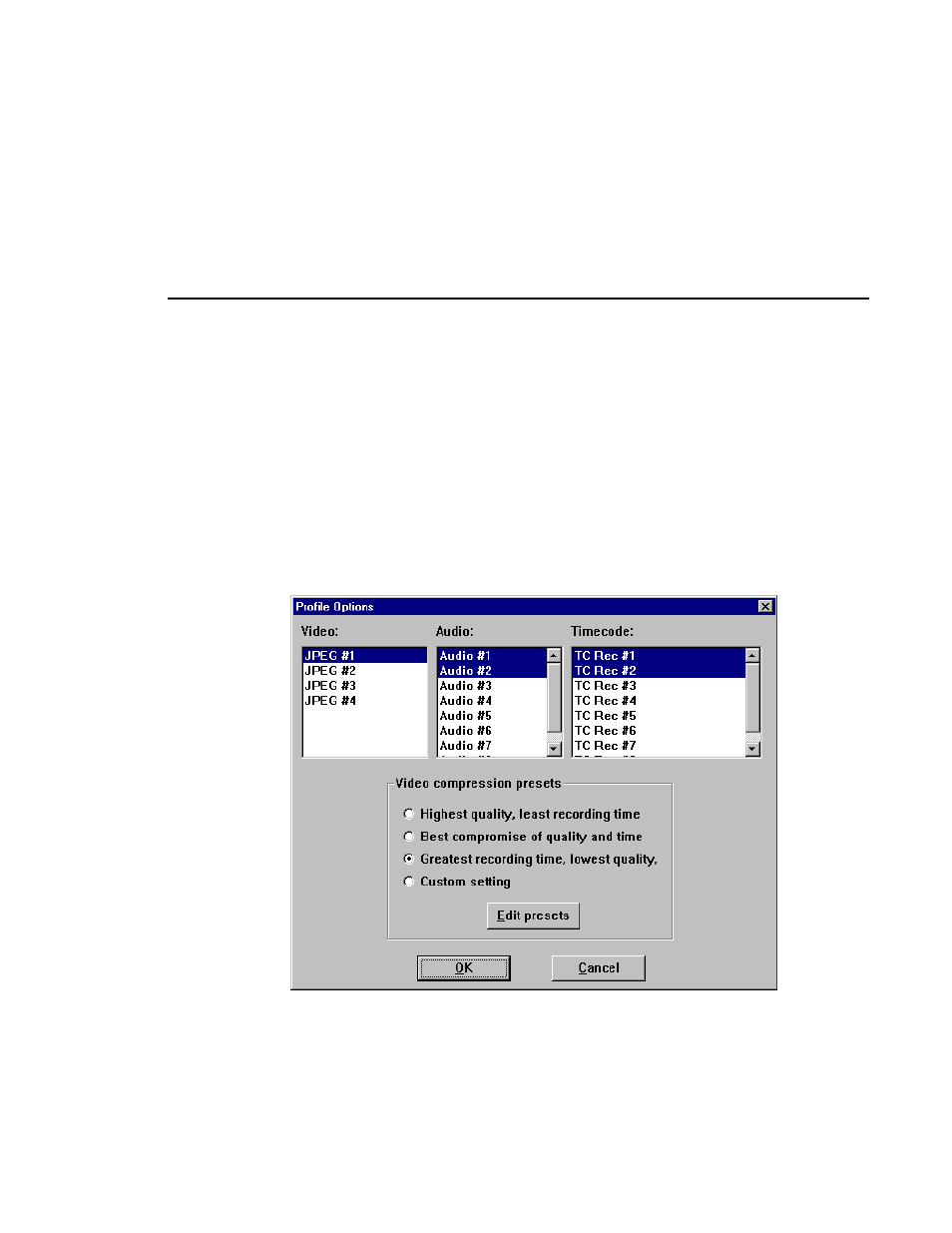

Figure 75. Profile Options dialog box
