Chapter 2 Using the Profile Configuration Manager
76 Profile Family
Audio Configuration for the PDR200
The Audio Configuration dialog box shown in Figure 47 allows you to
configure input and output channels, input clocking, audio quality and monitor
channels.
Input and Output Mapping
The Input Mapping tab is used for mapping input sources to Profile channels,
while the
Output Mapping tab is used for mapping Profile channels to output
destinations. For example, you can map Profile Audio Chassis (PAC) input
sources and serial digital audio input sources. Figure 47 and Figure 48 illustrate
a sample configuration: a Profile unit with an audio signal processing board, a
PAC 208 chassis (with A/D and D/A convertors and connectors for eight
channels), and two serial digital cards providing eight analog audio channels,
eight digital audio channels, and four video channels with 16 embedded audio
channels each.

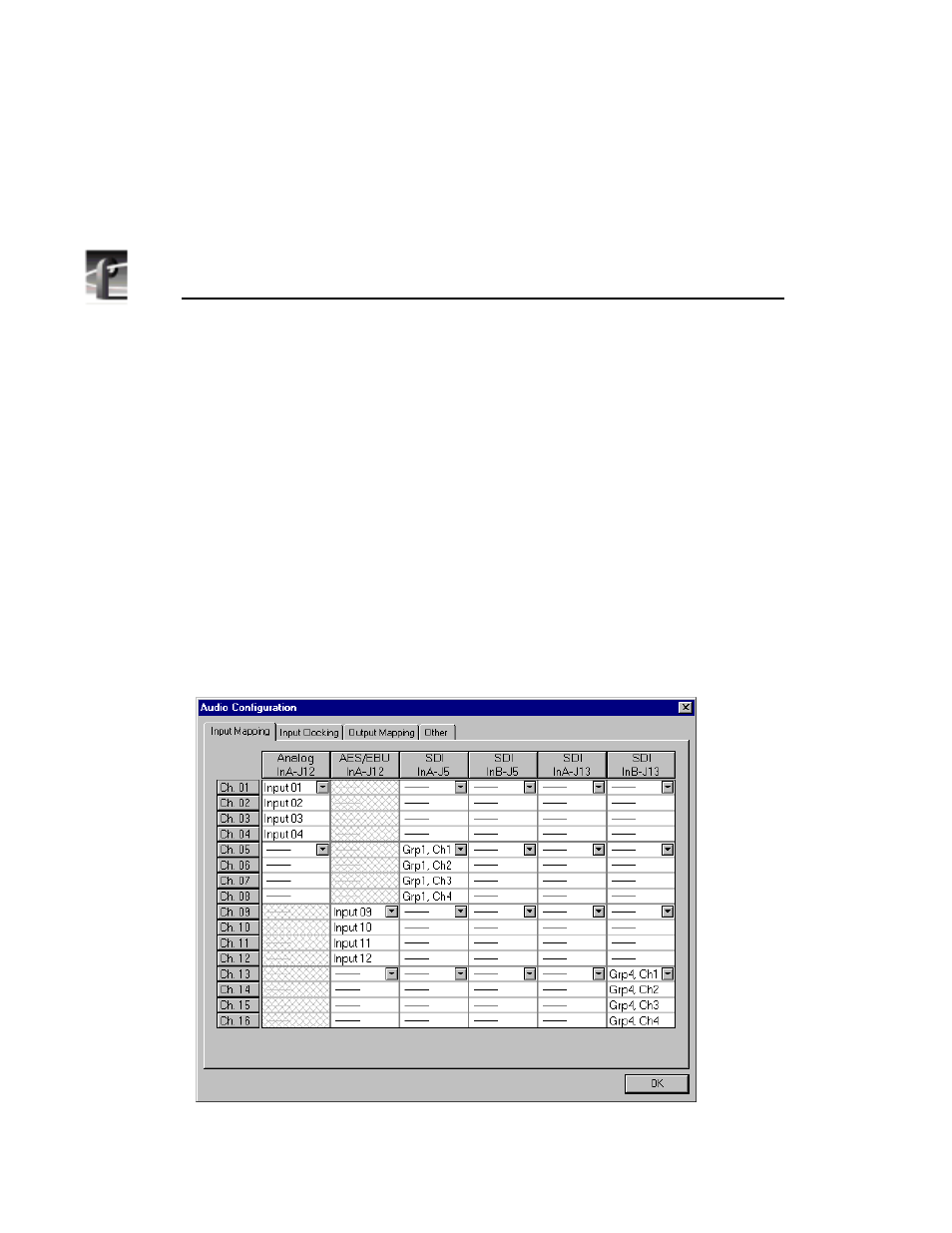

Figure 47. Audio Configuration dialog box, Input Mapping tab
