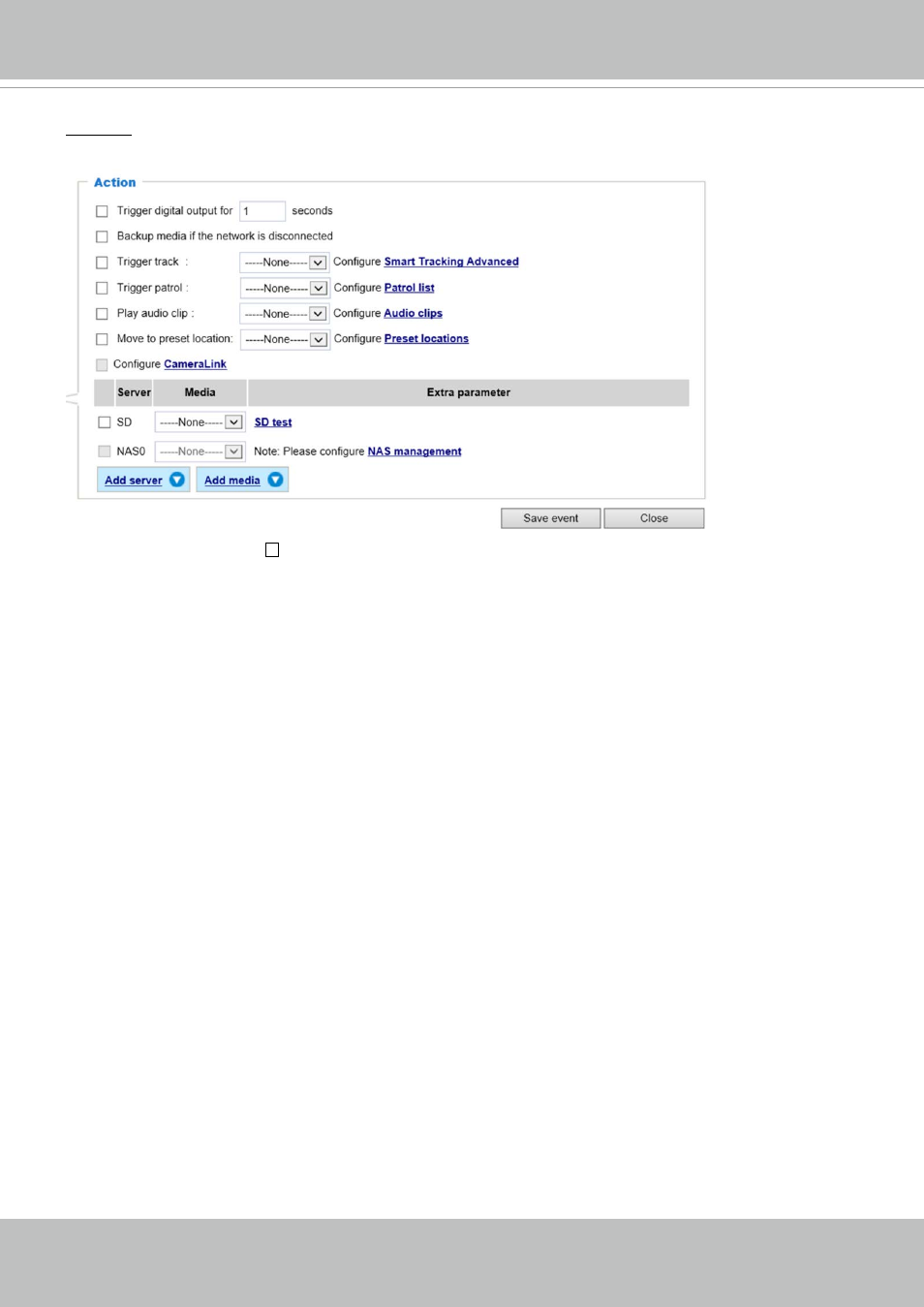

3. Action
Define the actions to be performed by the Network Camera when a trigger is activated.
■ Trigger digital output for seconds
Select this option to turn on the external digital output device when a trigger is activated. Specify the
length of the trigger interval in the text box.
■ Backup media if the network is disconnected
Select this option to backup media file on SD card if the network is disconnected. Please note that this
function will only be displayed after you set up a networked storage (NAS). For more information about
how to set up network storage, please refer to page 159.
■ Trigger auto tracking
Auto tracking starts by the occurrence of another trigger. A preset position should have been
configured for starting the Smart Tracking.
■ Play audio clip:
A pre-loaded audio clip can be configured to be played when one triggering condition is met. For
example, playing a warning message to deter an intruder.
■ Move to preset location
Select a preset location you’ve configured. Note that please configure Preset locations first. For
detailed information, please refer to page 135 Another checkbox will appear, Capture media after
moving to the location . You can select to record associated snapshot, video clip or system event
once the event is triggered and the camera moves to the preset location. See Add Media in the
following discussion.
To set an event with recorded video or snapshots, it is necessary to configure the server and media
settings so that the Network Camera will know what action to take (such as which server to send the
media files to) when a trigger is activated.
■ Trigger patrol
Takes action as performing a pre-configured patrol.
