VIVOTEK
User's Manual - 163
IMPORTANT:
• If the Alarm level and the received volume are set within a range of 20% on the wave
diagram, frequent alarms will be triggered. It is recommended to set the Alarm level farther
apart from the detected sound level.
• To configure and enable this feature, you must not configure video stream #1 into motion
jpeg. If an external microphone input is connected and recording of audio stream is
preferred, audio stream is transmitted between camera and viewer/recording station along
with stream #1.
• Refer to page 93 for Audio settings, and page 85 for video streaming settings.

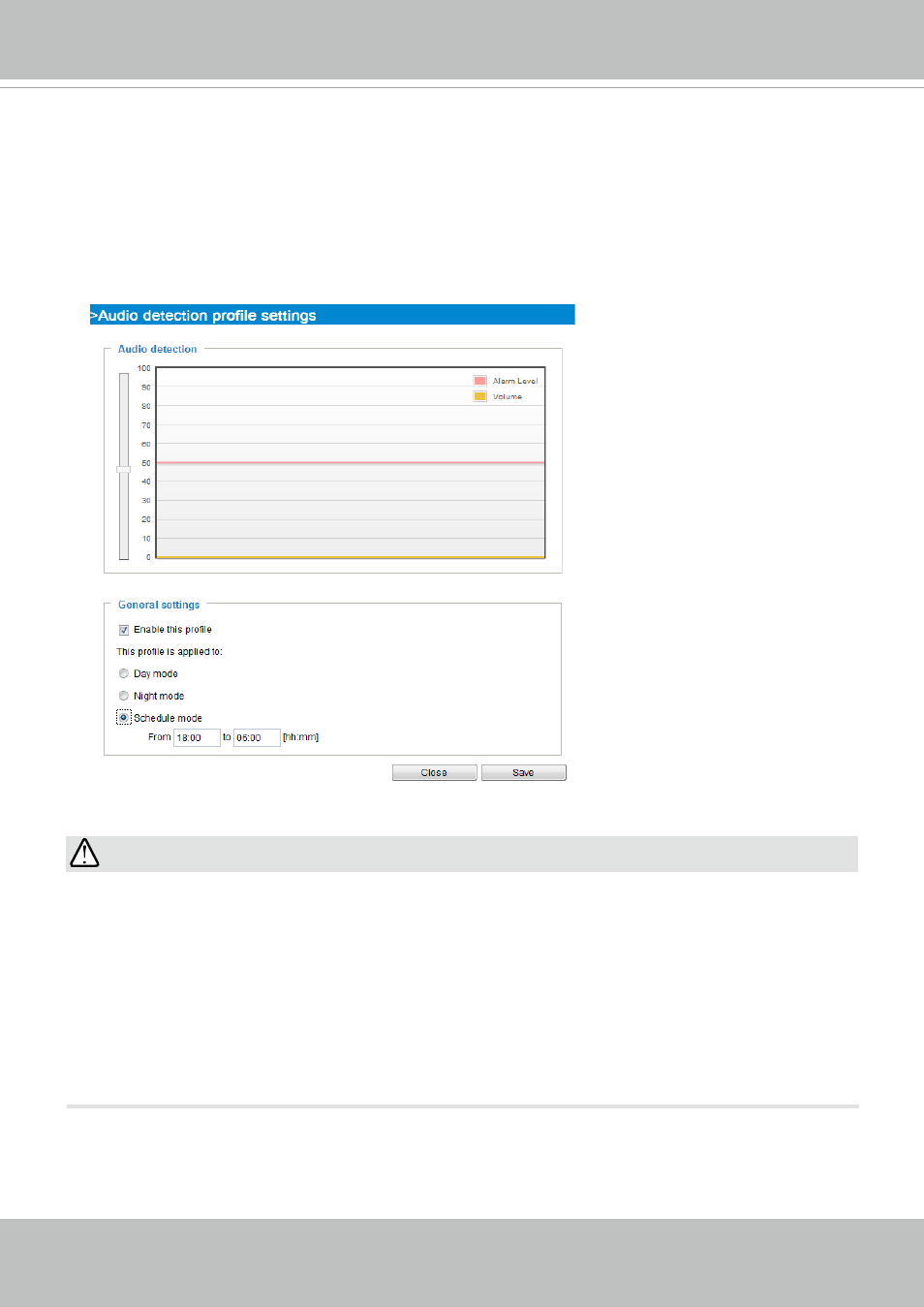

You can use the
Profile
window to configure a different Audio detection setting. For example, a place can
be noisy in the day time and become very quiet in the night.
1. Click on the
Enable this profile
checkbox. Once the Audio detection window is opened, the current
sound input will be interactively indicated by a fluctuating yellow wave diagram.
2. Use a mouse click to drag the
Alarm level
tab to a preferred location on the slide bar.
3. Select the
Day
,
Night
, or
Schedule
mode check circles. You may also manually configure a period
of time during which this profile will take effect.
4. Click
Save
and then click
Close
to complete your configuration.
