VIVOTEK
50 - User's Manual
Buttons Configuration

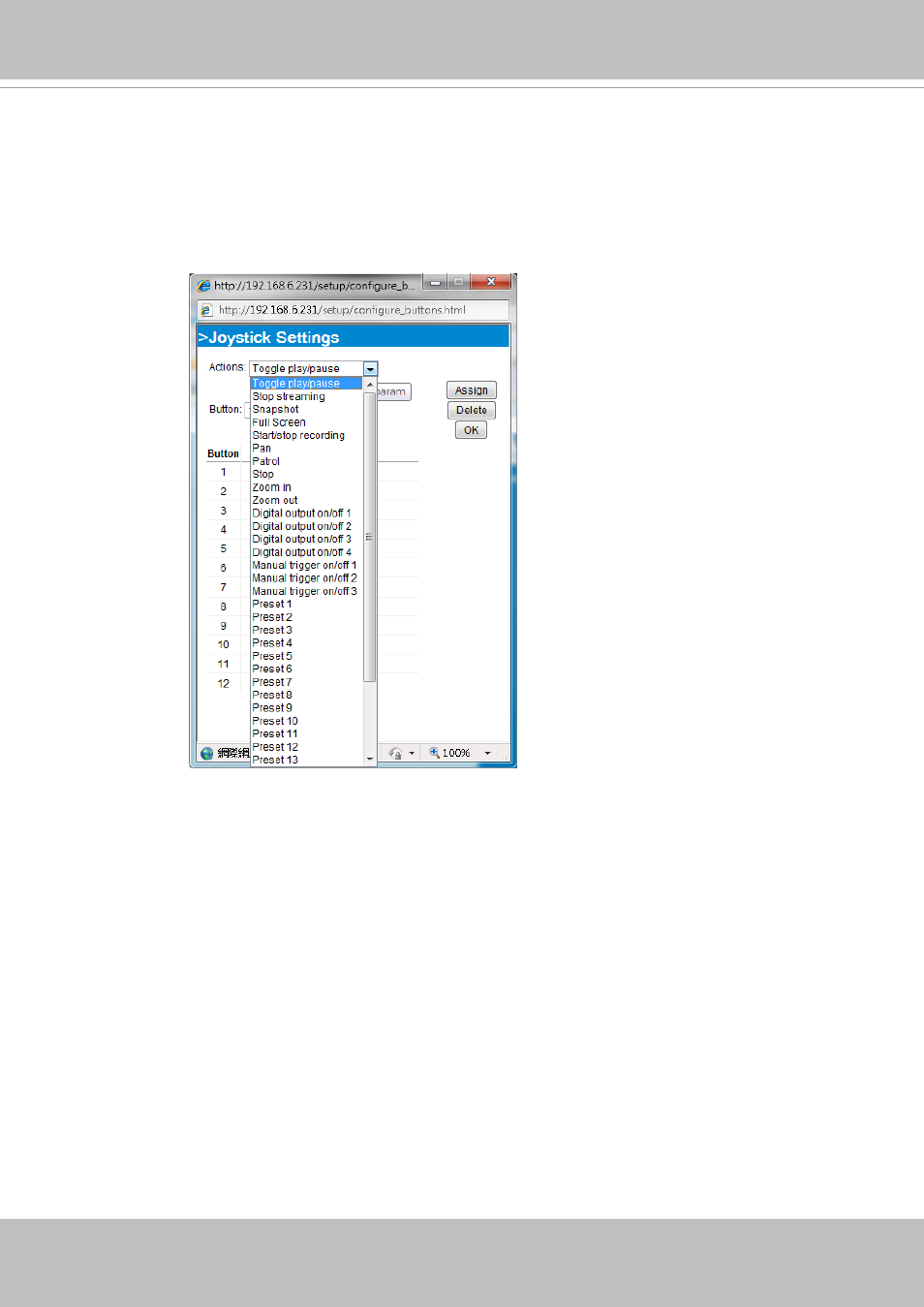

In the Joystick Settings window, you can use the combinations of pull-down menus, Actions and Button
number, to assign joystick buttons with different functions. The number of buttons may differ from the
joystick you attached.
Please follow the steps below to configure your joystick buttons:
1. Select the number of the button you want to configure from its pull-down list.
For example: Assign Preset 1 (move to preset 1 position) to Button 1.
2. Select an action from the Actions menu. Click Assign to associate the button with an action.
3. Your configuration will be automatically saved.
4. To disable an assignment, select the number of a button, and then click the Delete button. The
associated action will then be cleared.
5. Repeat the above process to assign actions to other buttons. When done, simply close the configuration
window.
