IQOYA SERV/LINK user manual
11.2 Sources
Sources is the name given to the audio streams published to the network by AES67 / RAVENNA capable devices. For IQOYA SERV/LINK,
sources are published to the network through the network interfaces Eth0 and Eth1.
Streams which audio channels come from the output block “RAVENNA AUDIO-RA0” are sent through AES67 A Eth0.
Streams which audio channels come from the output block “RAVENNA AUDIO-RA1” are sent through AES67 A Eth1.
11.3 Destinations
Destinations are the AoIP streams received from the network.
Destinations can be received on Eth0 and Eth1 ports.
The audio channels extracted from the Destinations received through AES67 A Eth0 are available from the input block “RAVENNA
AUDIO-RA0”.
The audio channels extracted from the Destinations received through AES67 A Eth1 are available from the input block “RAVENNA
AUDIO-RA1”.
11.4 Clock
IQOYA SERV/LINK can be be slaved to the PTP clock, or master PTP clock on the network.
Slave to PTP clock: the source clock is the PTP clock.
Master PTP Clock: the clock source has to be internal, WordClock, or MADI, and the card is elected as Master PTP on the network if its
PTP clock has a higher priority than other potential Master PTP clock units on the network.

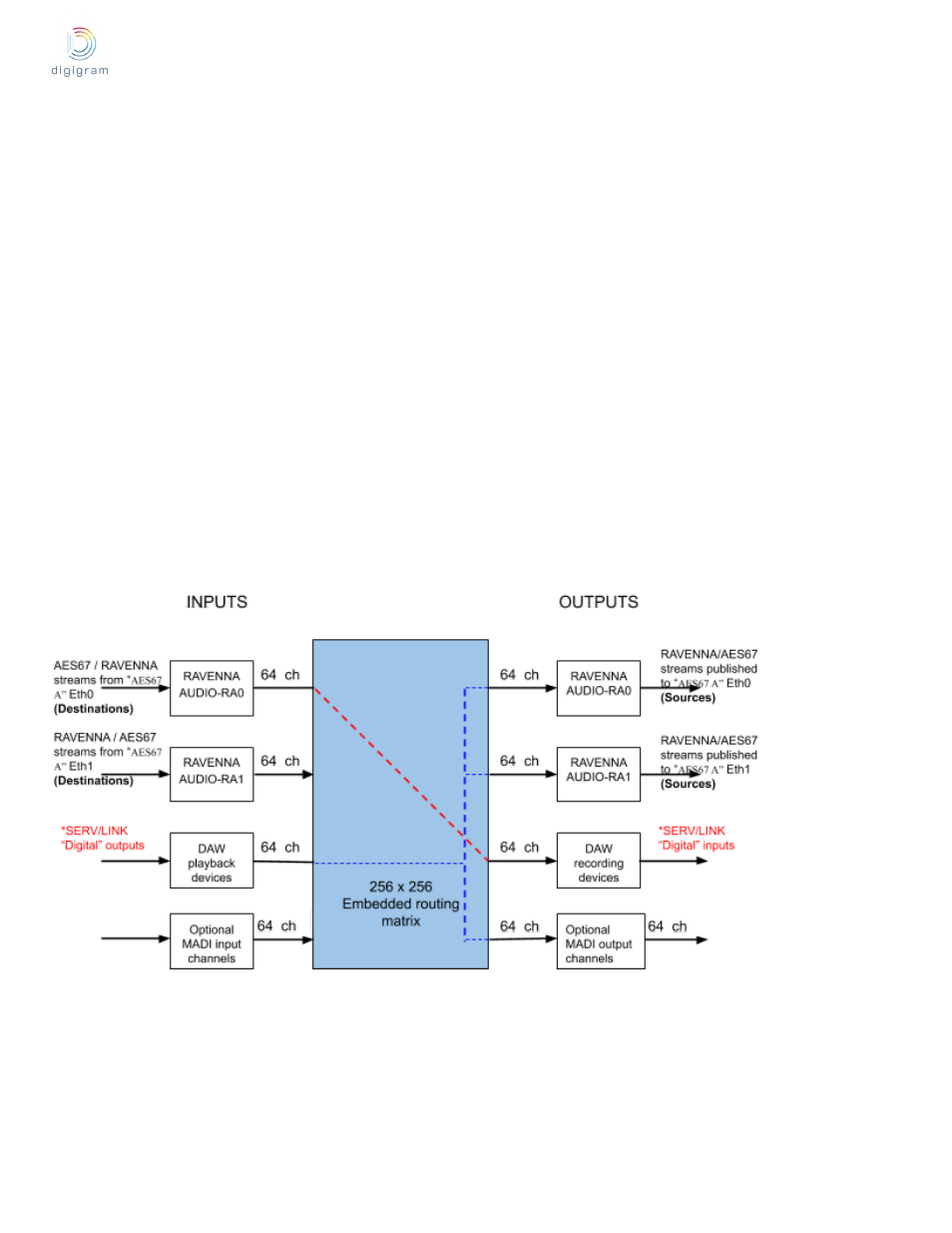

Default routing matrix
The matrix default routing is as follows:
