IQOYA SERV/LINK user manual

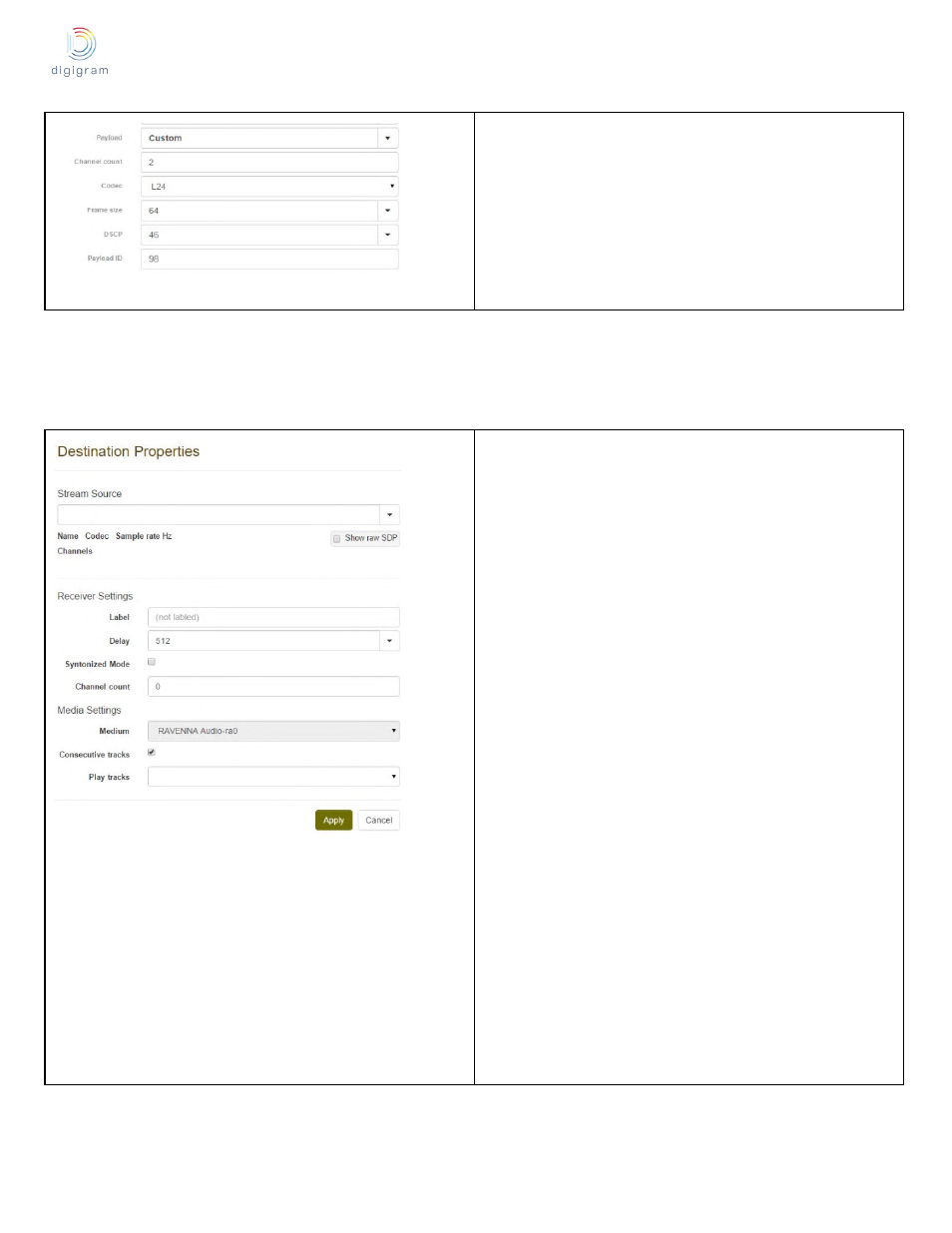

Receiving IP streams from the network
To declare an RAVENNA/AES67 stream to be received from the network, click on “Create destination” from the “Destinations” section.
136
Media Settings
Medium
: Select here the input port of the matrix from which the
audio channel(s) are to be selected.
Consecutive tracks
: If checked, channels of the stereo or
multichannel stream are taken consecutively from the input port
group that is selected. Otherwise, channels can be selected one
by one from
recording tracks
fields.
Recording tracks:
allows selecting the channels available from
the selected input port of the matrix.
Sream Source
: This drop down menu displays the list of available
IP streams published on the RAVENNA/AES67 network. Select a
stream from this list.
Show raw SDP
: Allows displaying the details of the stream
description.
Receive settings
Label:
displays the label of the selected stream.
Delay
: Enter the amount of delay to be applied, in samples, before
samples are played out (forwarded to
the internal audio interface). The delay is referenced to the
sampling time at the sender. Thus, it needs to be large enough to
cover all possible influences, such as the packet assembly delay
at the sender (frame size), transport delay, maximum packet jitter
and packet
disassembly delay at the receiver.
TIP: Set the delay to be larger than the frame size specified by the
sender. As a general rule, the
delay value should be 2 x sender's frame size. So, if the sender's
frame size = 128, set the delay =
256. If you experience drop-outs, increase the delay time.
Syntonized mode
: This mode is to be checked in case the
Sync
source
is not PTP.
Channel count
: The channel count determines the number of
channels to be routed from the selected stream to the internal
audio interface. If 0 is entered, all available channels are used
upon subscription.
Media Settings
Medium:
Select the output group of the routing matrix
Consecutive tracks
: If checked, channels of the stream are
played out on consecutive channels of the selected group.
Otherwise, output channels can be selected one by one from
Play
tracks
fields.
Play tracks:
selection of the tracks of the output group.
Click on
Apply
to confirm the setting changes.
