18

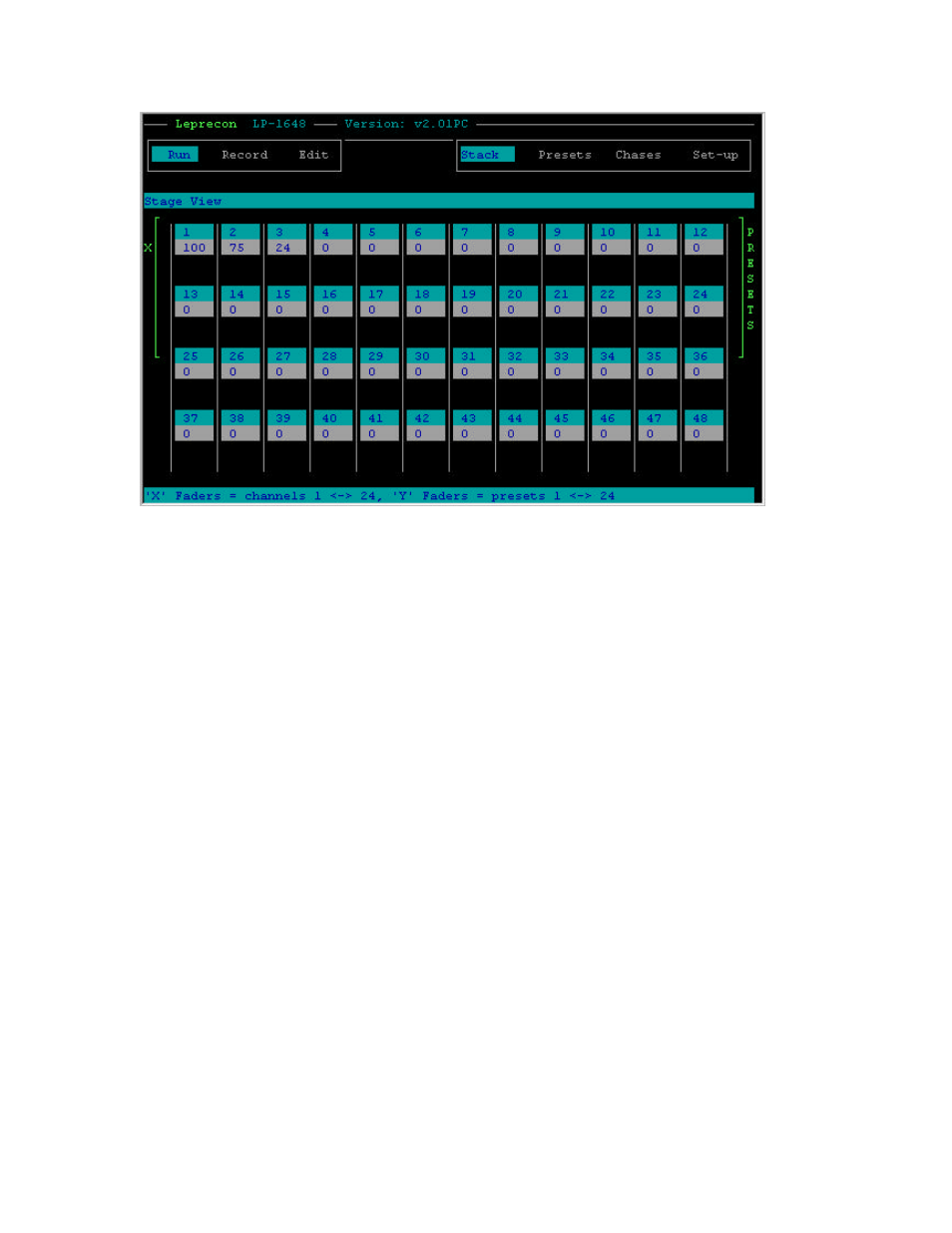

3.3. X and Y manual Scenes
The most basic control of the LP-1600 console is provided by the rows of faders
for the two manual scenes, labeled “X” and “Y.” Each of these faders controls
a single console channel, which may be patched into one or more dimmer
channels. The green output LED above each channel indicates that channel’s
relative intensity.
3.4. Bank Switching
The X and Y scene faders, and the LED above each channel, can be bank
switched so that twice as many channels can easily be controlled with the
same number of faders. The two BANK LEDs, just above the X-Master pot and
labeled 1-24 and 25-48 (in the case of an LP-1648), indicate which bank of
channels the faders and LEDs are currently representing.
Note that each channel LED has a channel number above and a channel
number below. On an LP-1624/48, the first LED, the one nearest the Wheel,
will be labeled 1 and 25. When the 1-24 BANK LED is on, the first fader will
control board channel 1, and the first LED will respond accordingly. Pressing
the BANK switch button will cause the 25-48 BANK LED to illuminate, and the
first fader will now control board channel 25.
