Smart Managed Pro Switches MS510TX and MS510TXPP
Configure Quality of Service
User Manual
207
The class name is a hyperlink to the page on which you can define the class
configuration.
The class name and class type are stated in the IPv6 Class Configuration section at the
top of the page. These fields are nonconfigurable on this page.
10.
Select one of the following Class Definition radio buttons:
•
Existing ACL
. From the menu, select an existing ACL for traffic classification. For
information about creating ACLs, see
Configure Access Control Lists on page
. If
you select this radio button, the fields on the page are disabled and you cannot define
classification rules.
•
Class Specific Rule
. Use class-specific rules. If you select this radio button (which is
selected by default), the fields on the page are enabled so that you can define
classification rules. See the next step.
11.

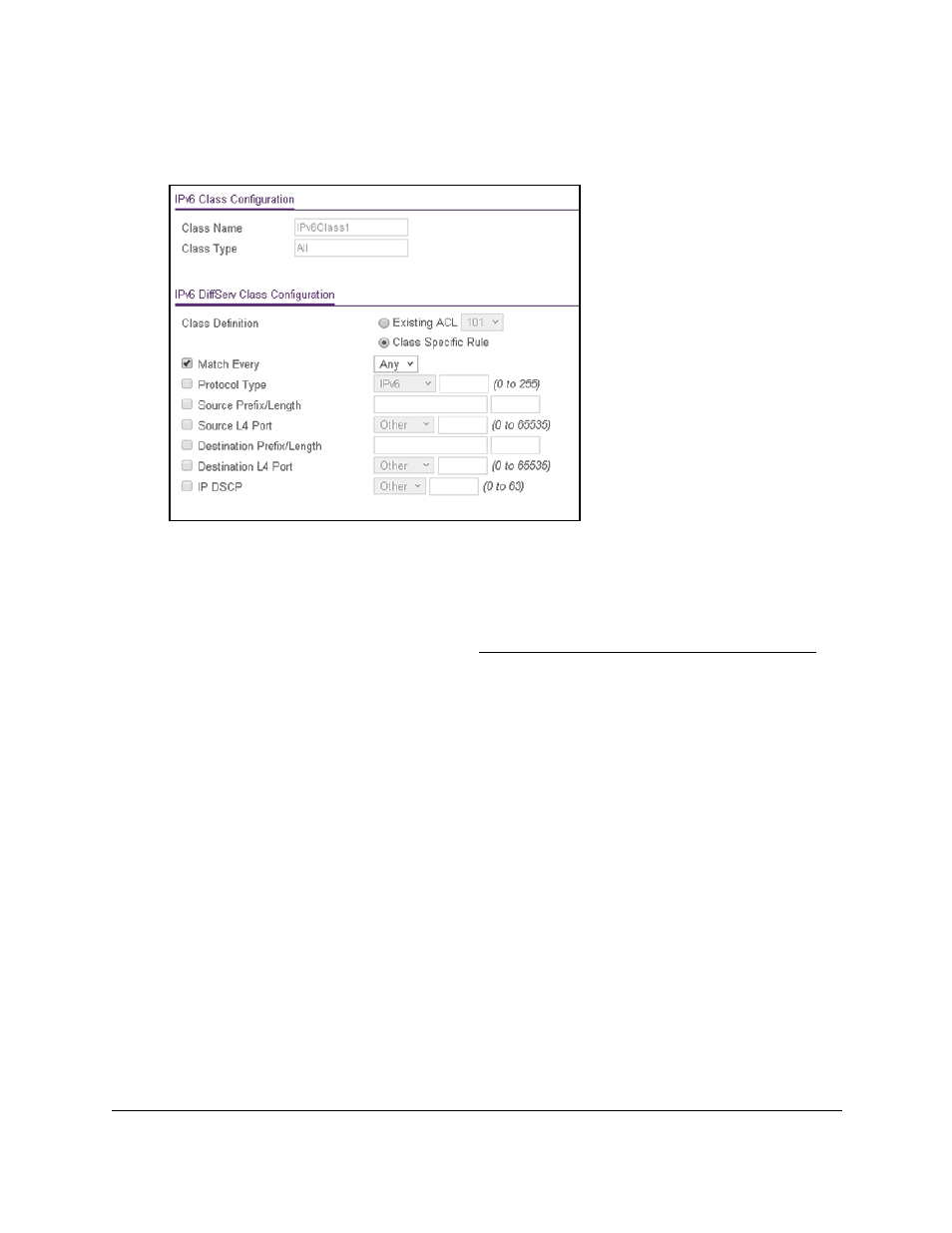

If you select the
Class Specific Rule
radio button, define the criteria that must be
associated with the IPv6 DiffServ class:
•
Match Every
. Select this check box to add a match condition that considers all
packets to belong to the class. The only selection from the
Match Every
menu is
Any
.
Note:
If you select the
Match Every
check box, you cannot define any other
options.
•
Protocol Type
. Select this check box to require a packet’s Layer 4 protocol to match
the specified protocol, which you must select from the menu. If you select
Other
from
the menu, you can enter a protocol number from 0 to 255.
•
Source Prefix/Length
. Select this check box to require a packet’s source prefix and
prefix length to match the specified source IPv6 prefix and prefix length. The prefix
must always be specified with the prefix length. The prefix can be in the hexadecimal
range from 0 to FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF and the prefix
length can be in the range from 0 to 128.
